UI Editor

Since 2.1.5

Warning

This command can only be used under the single player world.

LDLib2 provides a visual editor to support UI creatiom. Use command to open the UI Editor.

/ldlib2_ui_editor
Editor apperance

The UI Editor supports two ways of creating UIs through visualization:

  • UI XML
  • UI Template

UI XML

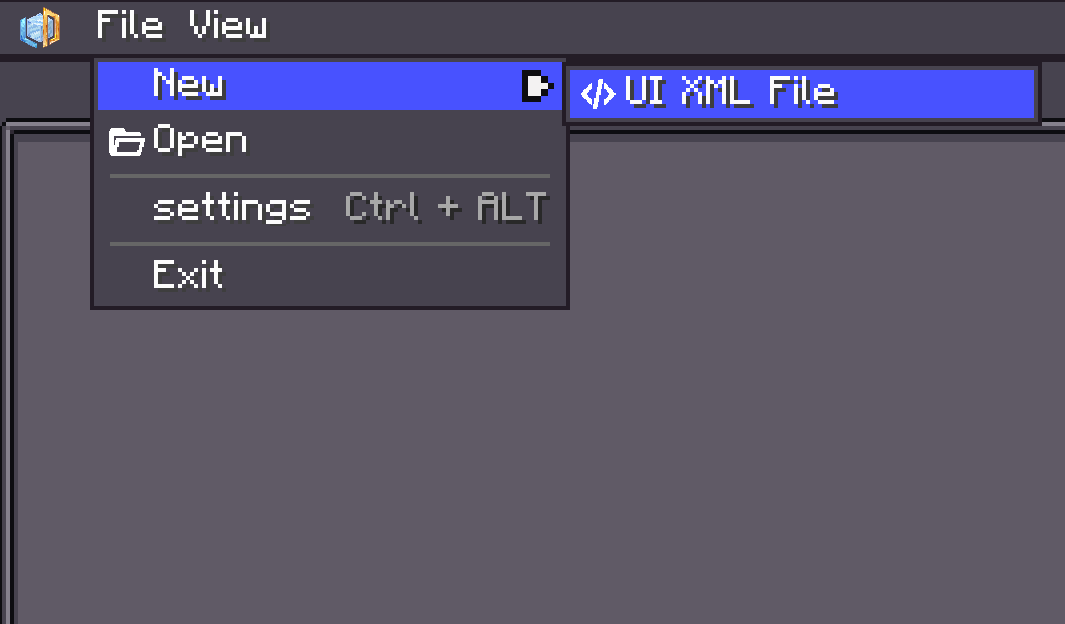

Click File → New → UI XML File to create a new UI XML file.
You can also click Open to load an existing XML file.

Editor appearance
Editor appearance

Once opened, you can edit the XML and see a real-time preview of your UI directly in the editor. For more xml details, check UI Xml

Tip

You can also edit the XML file using an external IDE (such as VS Code or IntelliJ IDEA).
The preview will automatically update when you save your changes.

UI Template

A UI Template is similar to UI XML and is used to define UI content
(including styles and the component tree).

The key differences are:

  • UI Templates can be edited visually using the UI Editor.
  • A saved UI Template can be reused as a template component in other UI XML files or UI Templates.

Unlike UI XML files, UI Templates are managed by LDLib2’s resource system.
To create one, use the Resource Panel:

Editor appearance

Steps:

  1. Select the UI resource category.
  2. Choose or create a resource provider.
  3. Right-click and create a UI Template, then double-click it to enter edit mode.

Edit your Template

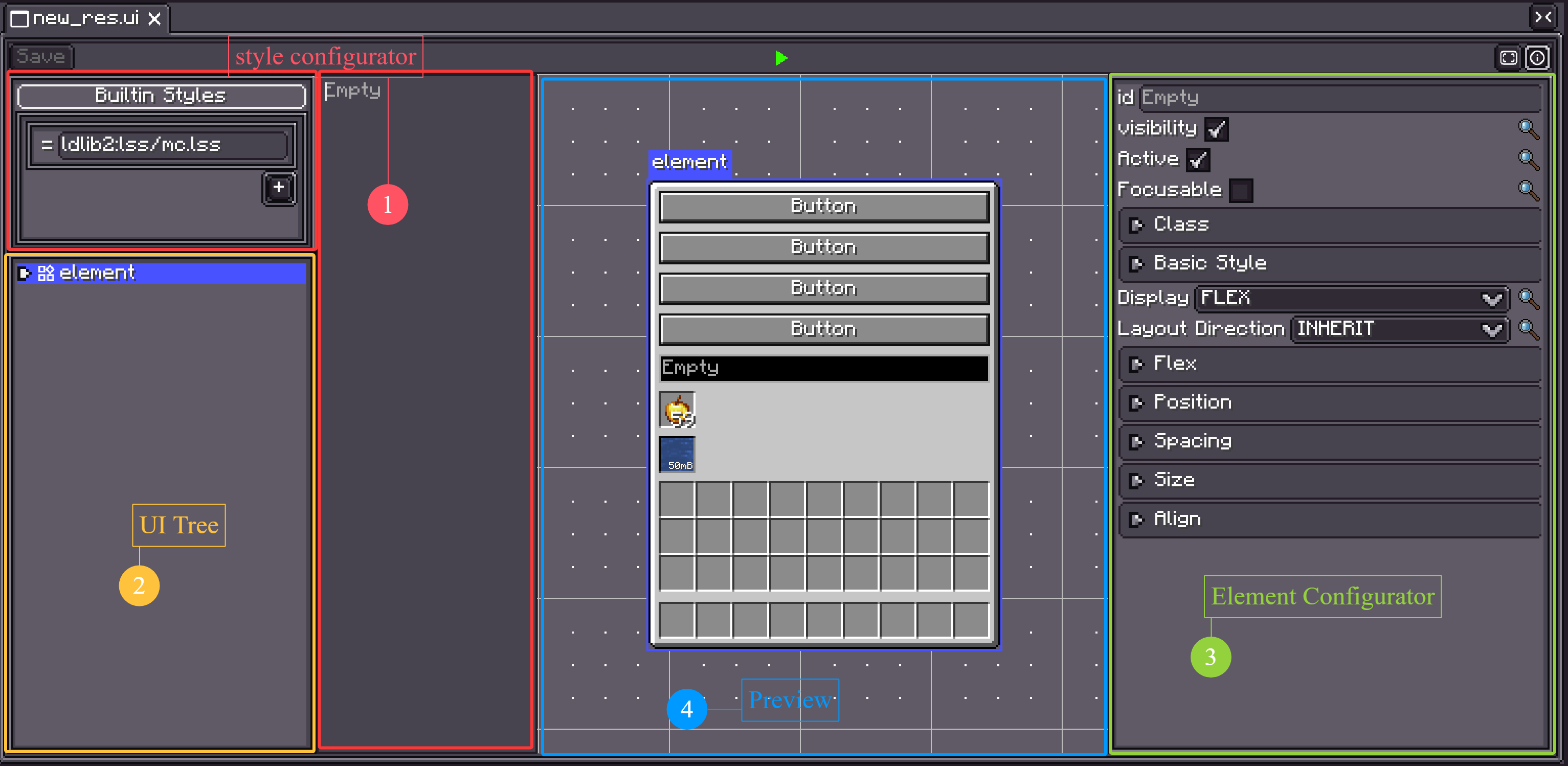

After opening a UI Template, you will see the following editor interface:

Editor appearance

  1. Style Configurator
    Edit built-in styles, add or remove external stylesheets, and inspect applied styles.

  2. UI Tree
    Displays the full UI hierarchy.
    You can create or remove components via the context menu, select multiple elements, or drag to reorder the hierarchy.

  3. Element Configurator
    Shows configurable properties of the currently selected element.

  4. Preview
    Provides a real-time preview of your UI.

Using the UI Editor, you can configure layout, styles, and other settings visually.
If you understand the concepts introduced in the Preliminary section, the editor should be intuitive to use.
For components with special configuration options, refer to their individual documentation pages.

Load UI Template and setup

There are two methods to load and use your template for your UI.

  1. you could also move it to your assets and loaed it by a ResourceLoaction.
  2. if the resrouce is under the ldlib2 folder, you can right click the resource to obtain the resource path and load it.
Editor appearance
@Override
public ModularUI createUI(Player player) {
    var ui = Optional.ofNullable(UIResource.INSTANCE.getResourceInstance()
            // resource location based
            .getResource(new FilePath(ResourceLoaction.parse("ldlib2:resources/examples/example_layout.ui.nbt"))))

            // file based
            //.getResource(new FilePath(new File(LDLib2.getAssetsDir(), "ldlib2/resources/examples/example_layout.ui.nbt"))) // LDLib2.getAssetsDir() = ".minecraft/ldlib2/assets"

            .map(UITemplate::createUI)
            .orElseGet(UI::empty);

    // find elemetns and do data bindings or logic setup here
    var buttons = ui.select(".button_container > button").toList(); // by selector
    var container = ui.selectRegex("container").findFirst().orElseThrow(); // by id regex

    return ModularUI.of(ui, player);
}

function createUIFromUIResource(path) {
    return UIResource.INSTANCE.getResourceInstance().getResource(path).createUI();
}

function createUI(player) {
    // file based
    let ui = createUIFromUIResource("file(./ldlib2/assets/ldlib2/resources/global/modern_styles.ui.nbt)")

    // resource location based
    // let ui = createUIFromUIResource("file(ldlib2:resources/global/modern_styles.ui.nbt)")

    // find elemetns and do data bindings or logic setup here
    let buttons = ui.select(".button_container > button").toList(); // by selector
    let container = ui.selectRegex("container").findFirst().orElseThrow(); // by id regex

    return ModularUI.of(ui, player)
}

Loading Event

A saved UI Template only defines the visual structure and styles — it does not include runtime logic by default.
In most cases, you load the template and then manually attach handlers or bindings in code.

However, if you want to reuse the same UI in different contexts, repeating the same setup logic every time becomes tedious.

To address this, LDLib2 provides a hook event that lets you inject logic when the UI Template calls createUI(), so you can configure the returned UI automatically during creation.

@SubscribeEvent
public static void onUICreated(UITemplate.CreateUI event) {
    var template = event.template;
    var ui = event.ui;
    // do initialization here
}

UI Simulation

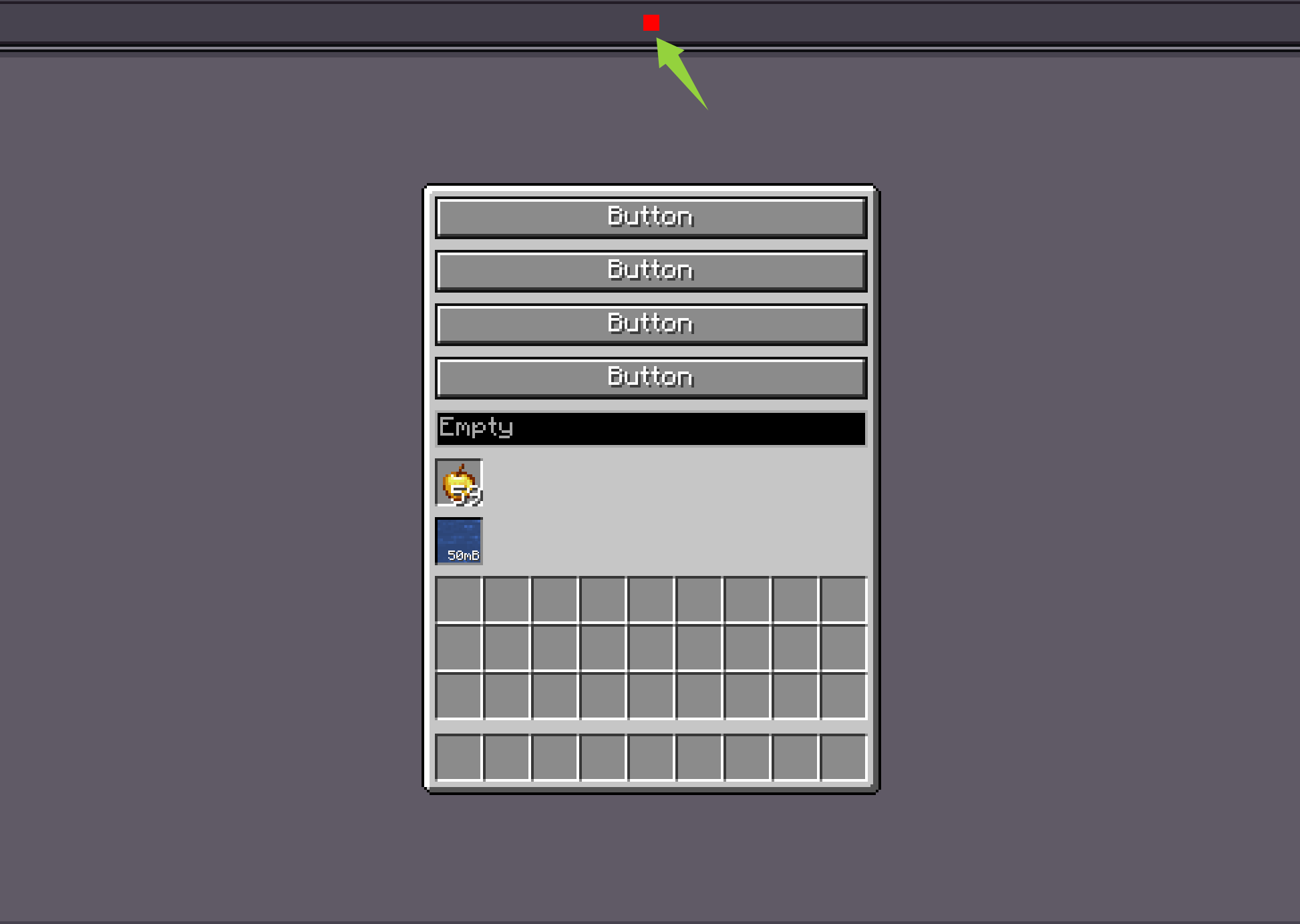

Click the green Play button at the top of the editor to enter simulation mode.
This allows you to interact with the UI and verify its behavior.

Editor appearance
