Preliminary

Since 2.0.0

Custom Shader Material lets you fully control how rendering is performed.
Photon2 allows you to write materials using Minecraft Core Shaders.

Warning

This wiki is not a shader programming tutorial and will not teach Minecraft shader basics.
Please refer to the linked resources below for shader knowledge.

---

📚 Related Links

• Minecraft Shaders
• Minecraft Shaders (Google Doc)
• Minecraft Shaders (GitHub Wiki)
• Post-processing Shaders
• Learn OpenGL

Photon2 and Ldlib2 extend Vanilla Minecraft Shader via ExtendedShader.
This extension adds:

• Geometry shader (attach) support
• Extra samplers and uniforms

For details, see the ExtendedShader page.

---

How to Use

• Click Select Shader to choose your shader JSON.
• Or specify the shader by its resource location.
• After modifying your shader, click Reload Shader to recompile and reload.

Shader Path Requirement

Minecraft requires all shader files (GLSL + JSON) to be placed in:

assets/<namespace>/shaders/core/

---

Shader Settings

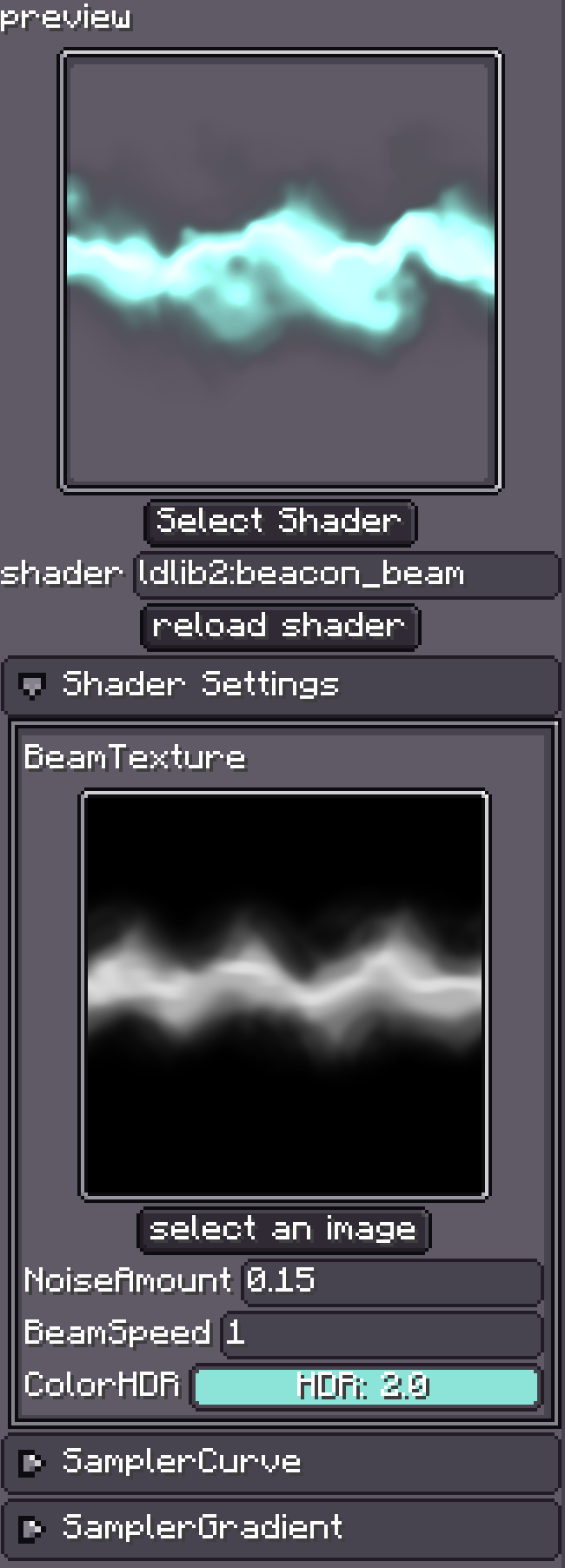

The Shader Settings panel displays all custom (non-built-in) samplers and uniforms.
You can edit them directly via the Inspector.

---

Sampler Curve / Sampler Gradient

Photon2 lets you pass a Curve or Gradient to the shader.
They are encoded into a 128×128 sampler so you can sample them in the shader to get values.

For details, see ExtendedShader.
