Layout

Info

Grid layout support will be introduced into Yoga in the future.

LDLib2 UI layout is built on top of the Yoga layout engine.

Yoga is an embeddable layout system used in popular UI frameworks such as React Native.
It is not a UI framework and does not perform any rendering.
Its sole responsibility is calculating the size and position of elements.

LDLib2 adopts a FlexBox-based layout model, which allows you to describe complex UI structures in a flexible and predictable way.

Setting Layout Properties

Each UIElement owns a layout object backed by Yoga.
You can configure layout properties in multiple ways, depending on your preference and use case.

In addition to the examples below, layout properties can also be defined through
LSS (LDLib Style Sheet), which is especially useful for separating layout logic from UI structure.

JavaKubeJS

var element = new UIElement();

// Set layout directly
element.getLayout()
        .flexDirection(YogaFlexDirection.ROW)
        .width(150)
        .heightPercent(100)
        .marginAll(10)
        .paddingAll(10);

// Set layout using a chaining lambda
element.layout(layout -> layout
        .flexDirection(YogaFlexDirection.ROW)
        .width(150)
        .heightPercent(100)
        .marginAll(10)
        .paddingAll(10)
);

// Set layout via stylesheet (LSS)
element.lss("flex-direction", "row");
element.lss("width", 150);
element.lss("height-percent", 100);
element.lss("margin-all", 10);
element.lss("padding-all", 10);

let element = new UIElement();

// Set layout directly
element.getLayout()
        .flexDirection(YogaFlexDirection.ROW)
        .width(150)
        .heightPercent(100)
        .marginAll(10)
        .paddingAll(10);

// Set layout using a chaining lambda
element.layout(layout -> layout
        .flexDirection(YogaFlexDirection.ROW)
        .width(150)
        .heightPercent(100)
        .marginAll(10)
        .paddingAll(10)
);

// Set layout via stylesheet (LSS)
element.lss("flex-direction", "row");
element.lss("width", 150);
element.lss("height-percent", 100);
element.lss("margin-all", 10);
element.lss("padding-all", 10);

Learning Flex Layout

Info

If you are already familiar with Flexbox, Yoga layout should feel very intuitive.
If not, we recommend reading the official Yoga documentation for a complete explanation.

For a lighter introduction, this chapter focuses on the most commonly used Flex concepts in LDLib2 UI.

UI Elements and Hierarchy

In LDLib2 UI, the interface is composed of UI elements (UIElement).

A UI element represents a visual container such as a panel, button, text field, or image.
UI elements can contain other UI elements, forming a UI hierarchy (also referred to as a layout tree).

Complex interfaces are built by combining multiple UI elements into nested hierarchies, with layout and styling rules applied at different levels.

flowchart LR
  R([UIElement])

  R --- A([UIElement])
  A --- A1([Label])
  A --- A2([Toggle])
  A --- A3([Slider])

  R --- B([UIElement])
  B --- B1([Label])
  B --- B2([Toggle])

  linkStyle 0,1,2,3,4,5,6 stroke:#9aa3ab,stroke-width:2px,stroke-dasharray:6 4;

Positioning UI Elements

When designing a UI layout, think of each screen as a collection of rectangular containers arranged horizontally or vertically.

Break down the layout into logical sections, then refine each section using child containers to organize content.

Positioning Modes

Yoga supports two primary positioning modes:

Relative positioning (default)

Elements participate in the Flexbox layout of their parent container.

Child elements are arranged according to the parent’s Flex Direction
Element size and position respond dynamically to:
- Parent layout rules (padding, alignment, spacing)
- The element’s own size constraints (width, height, min/max size)

If layout constraints conflict, the layout engine resolves them automatically.
For example, an element wider than its container may overflow.

Absolute positioning

Elements are positioned relative to their parent container, but do not participate in Flexbox layout calculations.

Flex properties such as Grow, Shrink, or alignment are ignored
Elements may overlap other content
Position is controlled using offsets such as Top, Right, Bottom, and Left

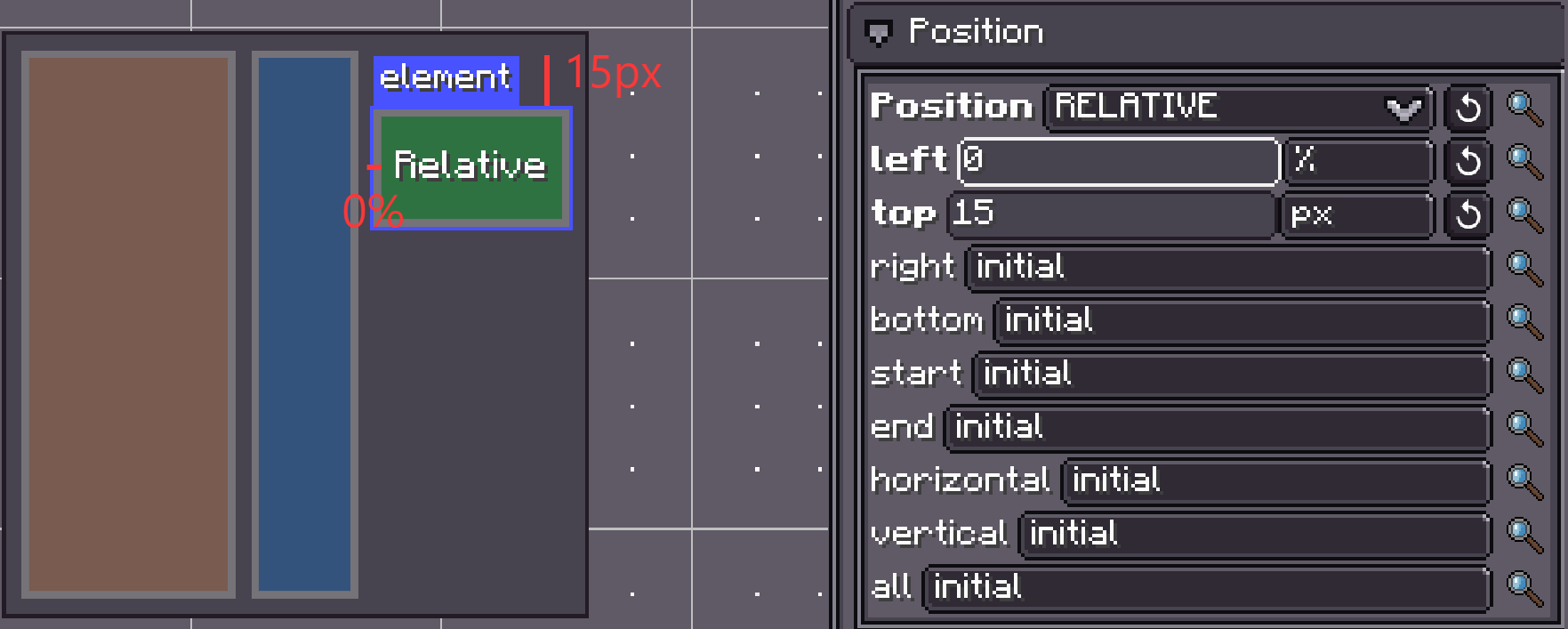

alt text — On the top, the blue ui element has a Relative position, with the parent element using Flex Direction: Row as the Flex setting. On the bottom, the blue ui element uses Absolute position and ignores the parent element’s Flexbox rules.

Size Settings

UI elements are containers by default.

Without explicit size rules, an element may expand to fill available space or collapse to the size of its content

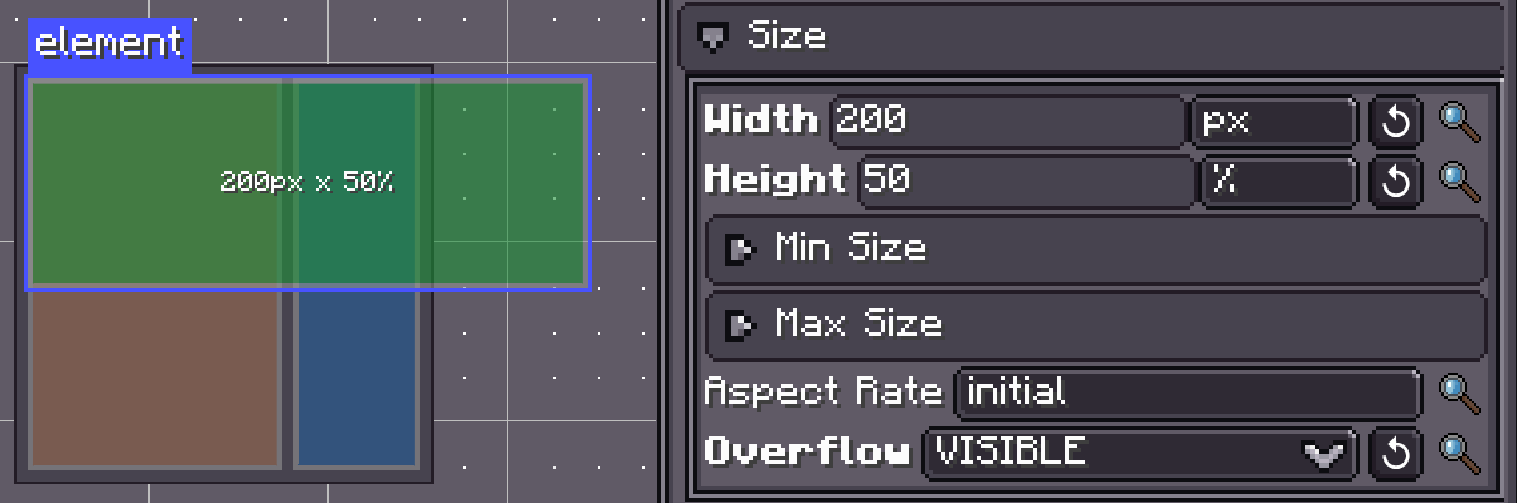

Width and Height define the element’s base size
Min and Max values limit how much an element can grow or shrink
if you set an Aspect Rate, one dimension will be decided by the other one

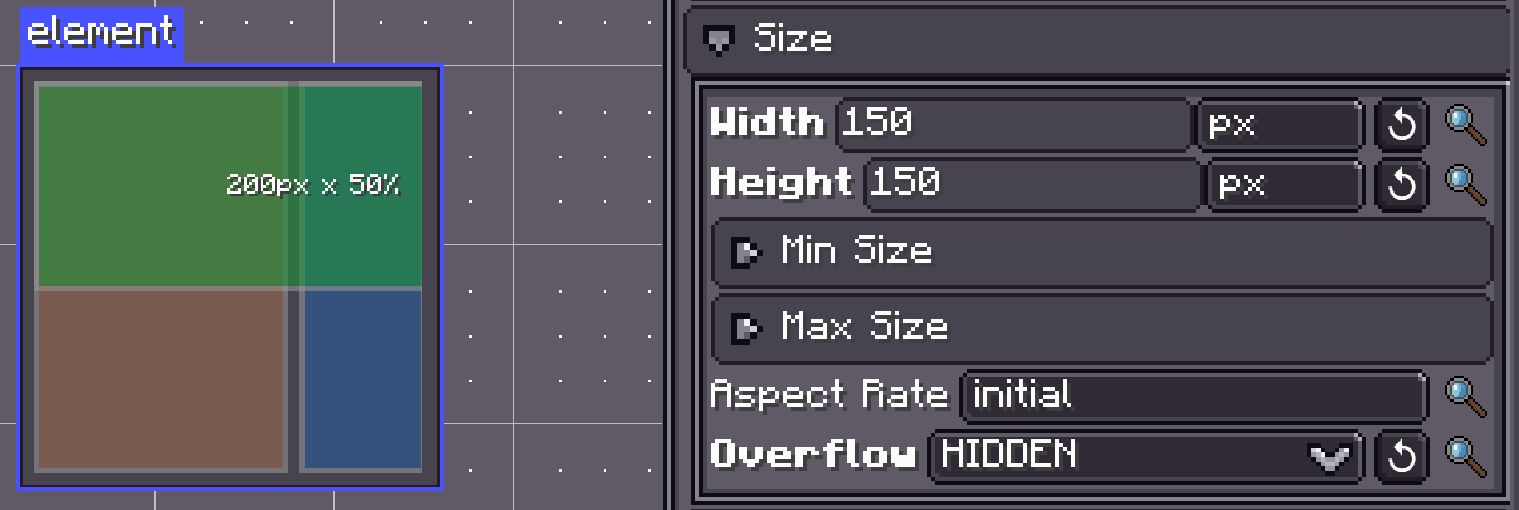

Overflow controls the clipping of an element’s content. The default value is visible, which means the element’s content isn’t clipped to the element’s bounds. If you set overflow to hidden, the element’s content is clipped to the element’s content bounds.
Sizes can be expressed in pixels or percentages

These size rules interact with Flexbox settings to determine the final layout.

Flex Settings

Flex settings affect how elements grow or shrink when using Relative positioning. It’s recommended that you experiment with elements to understand their behavior firsthand.

Flex Basis

Defines the initial size of an element before Grow or Shrink is applied.

Flex Grow

Flex Grow > 0 allows the element to expand and take available space
Higher values receive a larger share of free space
Flex Grow = 0 prevents expansion beyond the base size

Flex Shrink

Flex Shrink > 0 allows the element to shrink when space is limited
Flex Shrink = 0 prevents shrinking and may cause overflow

Elements with fixed pixel sizes do not respond to Grow or Shrink.

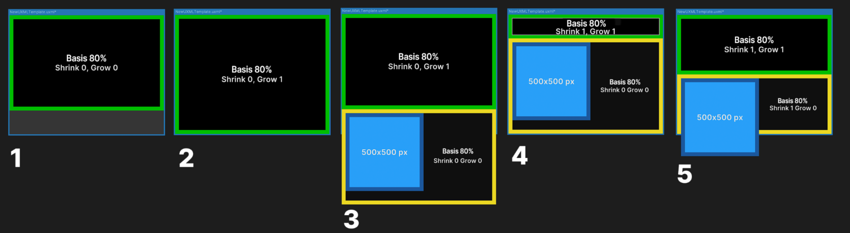

The above example shows how Basis works with the Grow and Shrink options:

The green element with a Basis of 80% occupies 80 percent of the available space.
Setting the Grow to 1 allows the green element to expand to the entire space.
With a yellow element added, the elements overflow the space. The green element returns to occupying 80 percent of the space.
A Shrink setting of 1 makes the green element shrink to fit the yellow element.

Here, both elements have a Shrink value of 1. They shrink equally to fit in the available space.

Flex

Flex = 1 equals to Flex Grow = 1 and Flex Shrink = 1, which is used to set Flex Grow and Flex Shrink at the same time.

💡 How element size is calculated

When using Relative positioning, the layout engine determines element size in this order:

Compute base size from Width and Height
Check whether the parent container has extra space or overflow
Distribute extra space using Flex Grow
Reduce size using Flex Shrink if space is insufficient
Apply constraints such as Min/Max size and Flex Basis
Apply the final resolved size

Flex Direction and Flex Wrapping

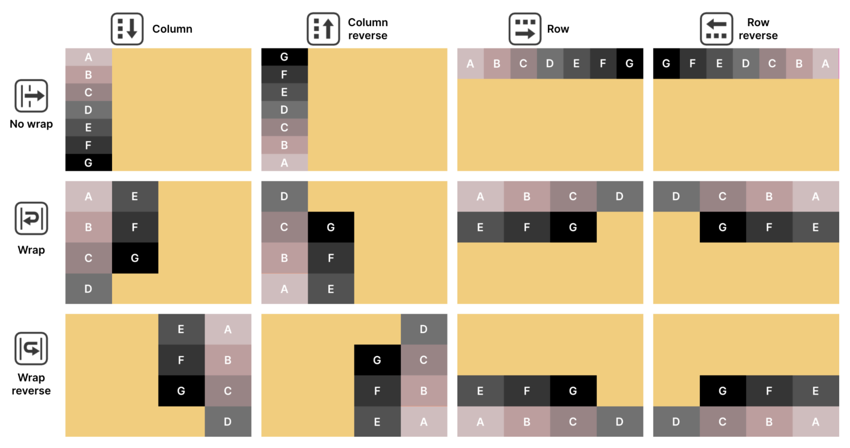

Flex Direction controls whether child elements are laid out in rows or columns
Flex Wrap controls whether elements stay on a single line or wrap onto additional rows or columns

Child elements follow the order defined in the UI hierarchy.

Alignment

Alignment settings control how child elements are positioned within a container.

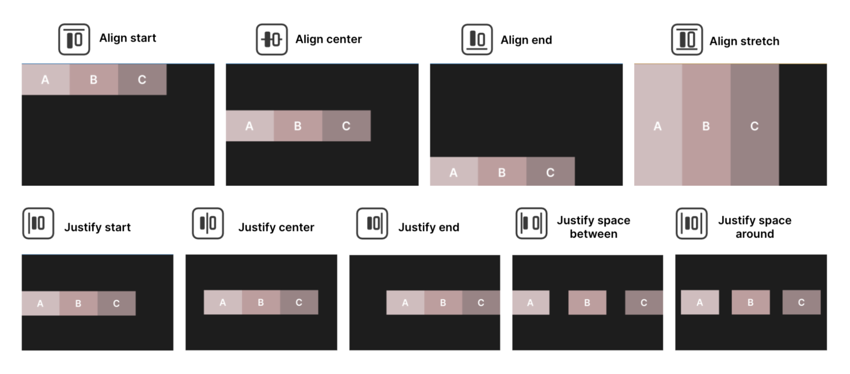

Align Items

Aligns elements along the cross-axis (perpendicular to the Flex Direction):

Justify Content

Controls spacing along the main axis:

Flex Grow and Shrink values influence how space is distributed.

Align Self

Allows an individual element to override the parent’s alignment rules.

Align Content

Controls how multiple rows or columns of flex items are aligned along the cross axis.

Note

Align Content only takes effect when:

The container allows wrapping (flex-wrap: wrap)
There are multiple lines of children

Margin and Padding

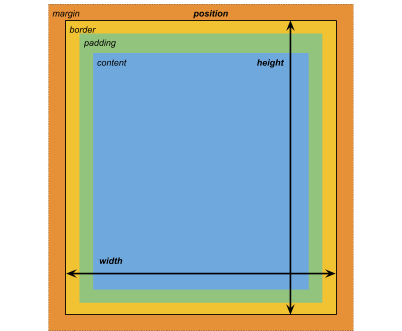

LDLib2 UI follows a box model similar to CSS:

Content: the element’s actual content
Padding: space between content and border
Border: optional boundary around the element, (avoid use it).
Margin: space outside the element, separating it from others
