Introduction

Since 2.0.0

The Materials system provides a flexible and extensible framework for handling rendering materials in particle systems.
It offers various material types with different rendering capabilities, from simple textures to complex custom shaders with HDR support and advanced effects:

• Texture Material
• Sprite Material
• Custom Shader Material

---

Universal Configuration

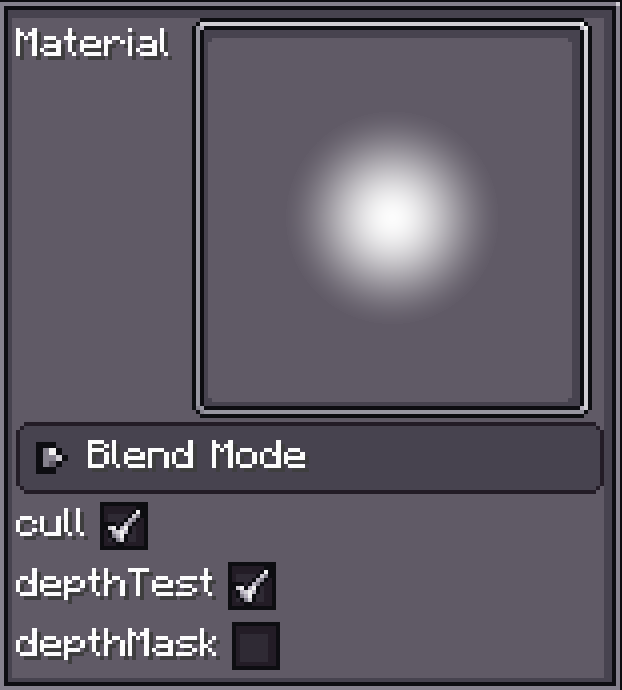

All materials share the following settings:

Property	Type	Description	Default
material	IMaterial	The specific material implementation	Built-in circle texture
blendMode	BlendMode	Controls how particles blend with the background	-
cull	boolean	Enable/disable face culling	true
depthTest	boolean	Enable/disable depth testing	true
depthMask	boolean	Enable/disable depth buffer writing	false

---

Texture Material is the most common type, designed for texture-based rendering.
It supports custom textures, HDR color processing, pixel-art mode, and more.
This makes it the most versatile material choice in the particle system.

Configuration parameters:

Property	Type	Description
Texture	ResourceLocation	Path to the texture file
Discard Threshold	float	Alpha discard threshold
HDR	Vector4f	HDR color vector
HDR Mode	HDRMode	HDR blending mode
Pixel Art.bits	int	Pixel art bit depth

Sprite Material allows you to access Minecraft’s registered particle textures.

The most powerful material type, allowing you to fully control rendering,
set custom samplers/uniforms, and even access particle data.
In fact, all material types can be implemented via a custom shader.

For more info, see Custom Shader Material.

---

Special Material: block_atlas

What is the Block Atlas?

See the official wiki: Block Atlas

The built-in block_atlas material is essentially a Texture Material that lets FX access Minecraft's block atlas texture.

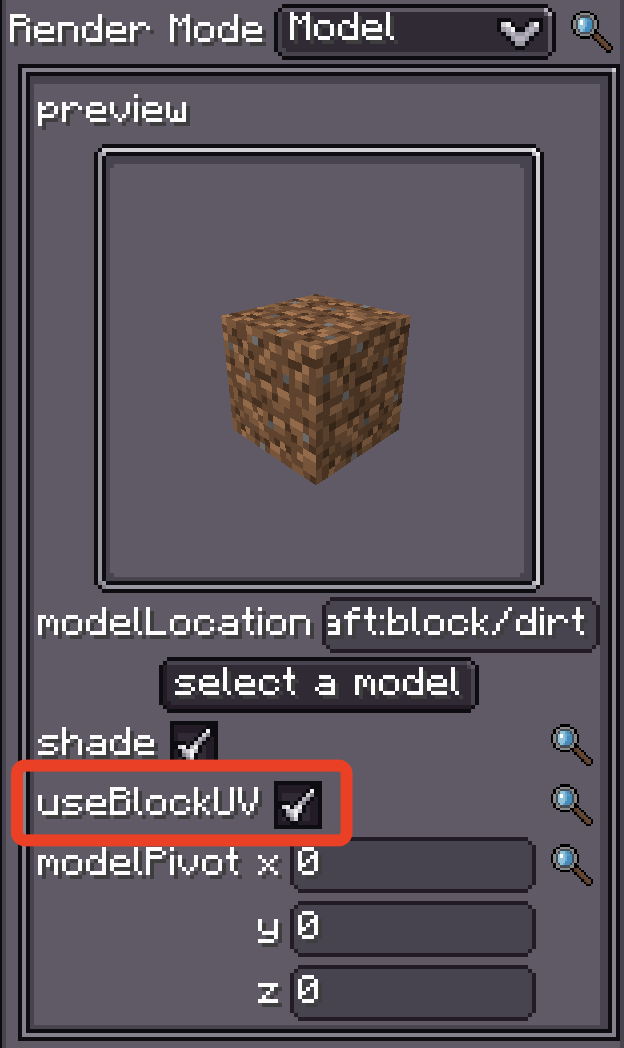

It’s especially useful when rendering particles in model mode with useBlockUV enabled —
the UVs can directly access the required block textures from the atlas.

You can also pass the block atlas as a sampler in a Custom Shader Material (see the sampler page for details).
