介绍
Configurable 是 LDLib2 基于注解的属性编辑系统。它可以把普通 Java 对象转换成可编辑 UI，让编辑器工具能够 inspect 当前选中的对象、修改字段，并把修改记录进 history，而不需要为每个属性面板手写 UI。
UI Editor 的元素属性、贴图、渲染器、样式对象、编辑器设置，以及大量 inspector 面板，都是通过这套系统实现的。对于自定义编辑器来说，Configurable 通常就是暴露“当前选中对象属性”的方式。
IDE 支持
推荐安装 IDEA 插件 LDLib Dev Tool。它为 LDLib2 项目提供代码高亮、语法检查、跳转、补全和注解支持。参考 Java Integration。
例如，TestConfigurators 本质上只是一个带注解字段和少量辅助方法的普通数据对象。这里省略了 package/import，但结构与测试源码一致：
@LDLRegister(name = "configurators", registry = "ldlib2:menu_test")
@NoArgsConstructor
public class TestConfigurators implements IConfigurable, IPersistedSerializable {
@Configurable
@ConfigNumber(range = {-5, 5})
private float numberFloat = 0.0f;
@Configurable
@ConfigColor
private int numberColor = -1;
@Configurable
private boolean booleanValue = false;
@ConfigHeader("Header")
@Configurable(tips = "Test tip 0")
private String stringValue = "default";
@Configurable
private ResourceLocation resourceLocation = LDLib2.id("test");
@Configurable
private Direction enumValue = Direction.NORTH;
@Configurable
private Vector3f vector3fValue = new Vector3f(0, 0, 0);
@Configurable
private Vector3i vector3iValue = new Vector3i(0, 0, 0);
@Configurable
private Quaternionf quaternionfValue = new Quaternionf(0, 0, 0, 1);
@Configurable
private BlockPos blockPosValue = BlockPos.ZERO;
@Configurable
private AABB aabbValue = new AABB(0, 0, 0, 1, 1, 1);
@Configurable
@ConfigNumber(range = {0, 1}, type = ConfigNumber.Type.FLOAT)
private Range rangeValue = Range.of(0, 1);
@Configurable
private TransformRef transformRef = new TransformRef();
@ConfigHeader("Array Like")
@Configurable
private int[] intArray = new int[]{1, 2, 3};
@Configurable
private List<Boolean> booleanList = new ArrayList<>(List.of(true, false, true));
@Configurable
private Component componentValue = Component.translatable("ldlib.author");
@Configurable(subConfigurable = true)
private final TestToggleGroup toggleGroup = new TestToggleGroup();
@Configurable
@ConfigList(
configuratorMethod = "buildTestGroupConfigurator",
addDefaultMethod = "addDefaultTestGroup"
)
private final List<TestGroup> groupList = new ArrayList<>();
@Configurable
@ConfigSelector(candidate = {"A", "B", "C"})
private String stringSelector = "A";
@Configurable
@ConfigSelector(
candidate = {"north", "west", "east"},
subConfiguratorBuilder = "subConfiguratorBuilder"
)
private Direction subConfiguratorSelector = Direction.NORTH;
@Configurable
@ConfigSearch(searchConfiguratorMethod = "createBlockSearchConfigurator")
private Block blockSearch = Blocks.STONE;
@Configurable
private ItemStack item = new ItemStack(Items.STONE);
@Configurable
private FluidStack fluid = new FluidStack(Fluids.WATER, 1000);
@Configurable
@ConfigRL(ConfigRL.Type.ITEM_TAG_KEY)
private ResourceLocation itemTagKey = ItemTags.AXES.location();
@Configurable
private EntityType<?> entityType = EntityType.PIG;
@Override
public ModularUI createUI(Player player) {
var root = new ScrollerView();
root.layout(layout -> {
layout.width(250);
layout.height(350);
}).setId("root");
var group = new ConfiguratorGroup("root");
group.setCollapse(false);
group.setTips("Test tip 0", "Test tip 1", "Test tip 2");
buildConfigurator(group);
return new ModularUI(UI.of(root.addScrollViewChild(group)));
}
private Configurator buildTestGroupConfigurator(
Supplier<TestGroup> getter,
Consumer<TestGroup> setter
) {
var instance = getter.get();
return instance != null ? instance.createDirectConfigurator() : new Configurator();
}
private TestGroup addDefaultTestGroup() {
return new TestGroup();
}
private void subConfiguratorBuilder(Direction direction, ConfiguratorGroup group) {
switch (direction) {
case NORTH -> group.addConfigurator(new Configurator("NORTH"));
case WEST -> {}
case EAST -> group.addConfigurator(new Configurator("EAST"));
default -> group.addConfigurator(new Configurator("DEFAULT"));
}
}
private SearchComponentConfigurator.ISearchConfigurator<Block> createBlockSearchConfigurator() {
return new SearchComponentConfigurator.ISearchConfigurator<>() {
@Override
public Block defaultValue() {
return Blocks.STONE;
}
@Override
public void search(String word, IResultHandler<Block> searchHandler) {
String lower = word.toLowerCase();
for (ResourceLocation key : BuiltInRegistries.BLOCK.keySet()) {
if (key.toString().toLowerCase().contains(lower)) {
searchHandler.acceptResult(BuiltInRegistries.BLOCK.get(key));
}
}
}
@Override
public String resultText(Block value) {
return BuiltInRegistries.BLOCK.getKey(value).toString();
}
};
}
public static class TestToggleGroup implements IToggleConfigurable {
@Getter
@Setter
private boolean isEnable = false;
@Configurable
@ConfigSelector(candidate = {"north", "west", "south", "east"})
private Direction enumValue = Direction.NORTH;
}
public static class TestGroup implements IConfigurable {
@Configurable
@ConfigNumber(range = {0, 1}, type = ConfigNumber.Type.FLOAT)
private Range rangeValue = Range.of(0, 1);
@Configurable
private Direction enumValue = Direction.NORTH;
@Configurable
private Vector3i vector3iValue = new Vector3i(0, 0, 0);
}
}

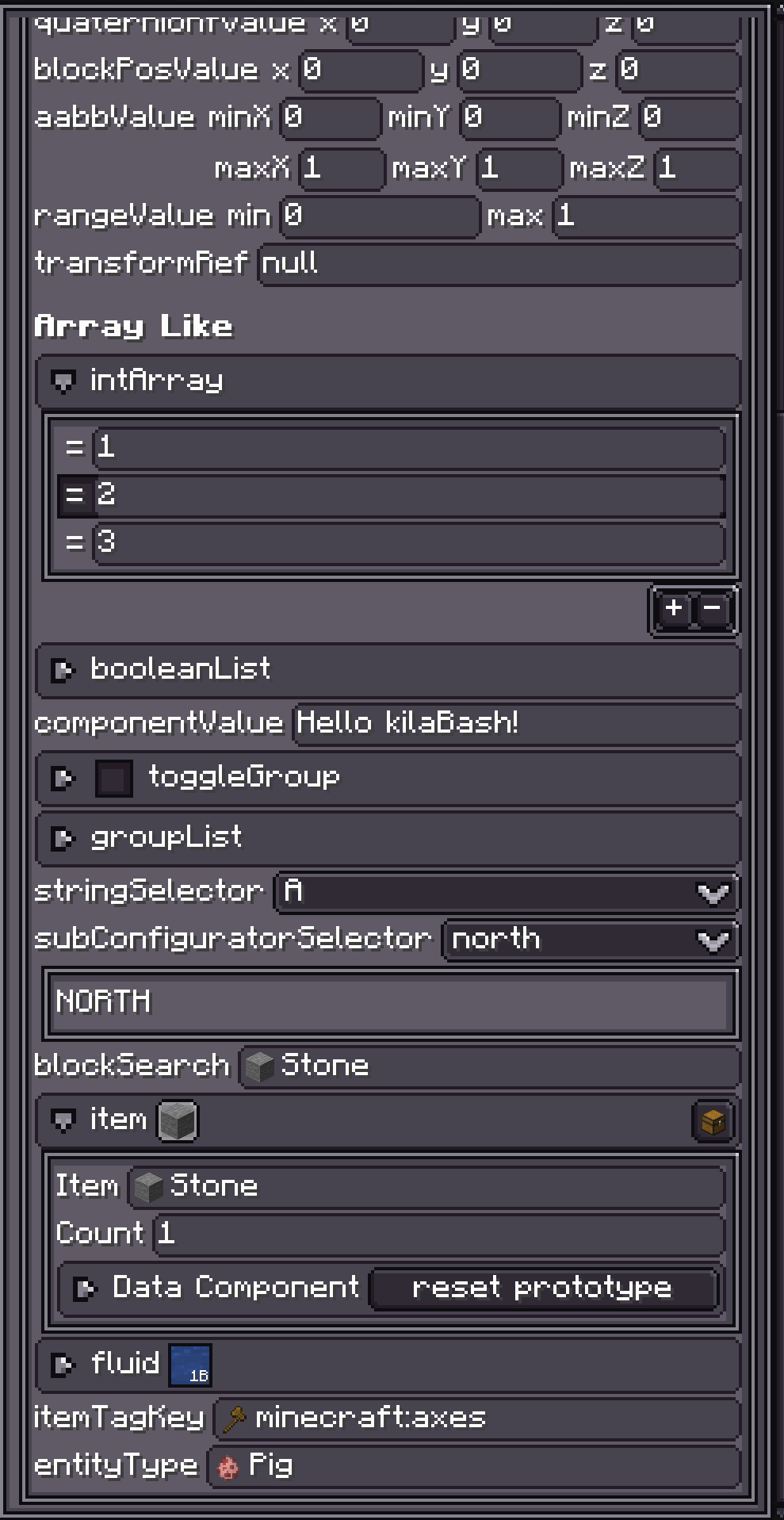

调用 buildConfigurator(group) 后，LDLib2 会把这些字段转换成可编辑面板：
TestConfigurators 生成的 configurator 面板。
flowchart LR
A["IConfigurable object"] --> B["ConfiguratorParser"]
B --> C["Configurable fields"]
C --> D["IConfiguratorAccessor"]
D --> E["Configurator UI"]
E --> F["Inspector"]章节导航
快速开始 介绍如何把几个字段暴露到 editor inspector。
注解 介绍 @Configurable 以及用于名称、提示、范围、选择器、列表、搜索字段、setter 和资源路径的辅助注解。
Accessors 介绍 LDLib2 如何根据 Java 类型选择 UI 控件，以及如何为自己的类型注册支持。
Configurator UI 介绍 accessors 创建的实际 UI 节点：Configurator、ConfiguratorGroup、数组/列表组、事件和复制粘贴行为。
Inspector 与 History 介绍 editor 的 InspectorView 如何展示 IConfigurable、监听变更并记录 undo/redo。
源码示例 给出建议阅读的源码入口。
什么时候使用
当对象有编辑器属性时使用 Configurable：商店条目、动画片段、节点图常量、渲染器设置、UI 元素样式，或者自定义 view 选中的任何数据模型。
如果属性面板主要是普通字段，给字段加注解并让 ConfiguratorParser 构建 UI。如果面板需要自定义布局、条件行或者特殊控件，重写 buildConfigurator(...) 并手动添加 configurators。
@Configurable 字段默认会持久化。PersistedParser 会像处理 @Persisted 字段一样处理它们，除非使用 @Configurable(persisted = false)。序列化部分见 PersistedParser。
