A blueprint is a node graph that reacts to a machine's events. It reaches everything the KubeJS machine events reach — states, traits, recipe logic, redstone, custom data, effects, even the machine UI — but it lives inside the machine project, so a machine ships its behaviour with itself.

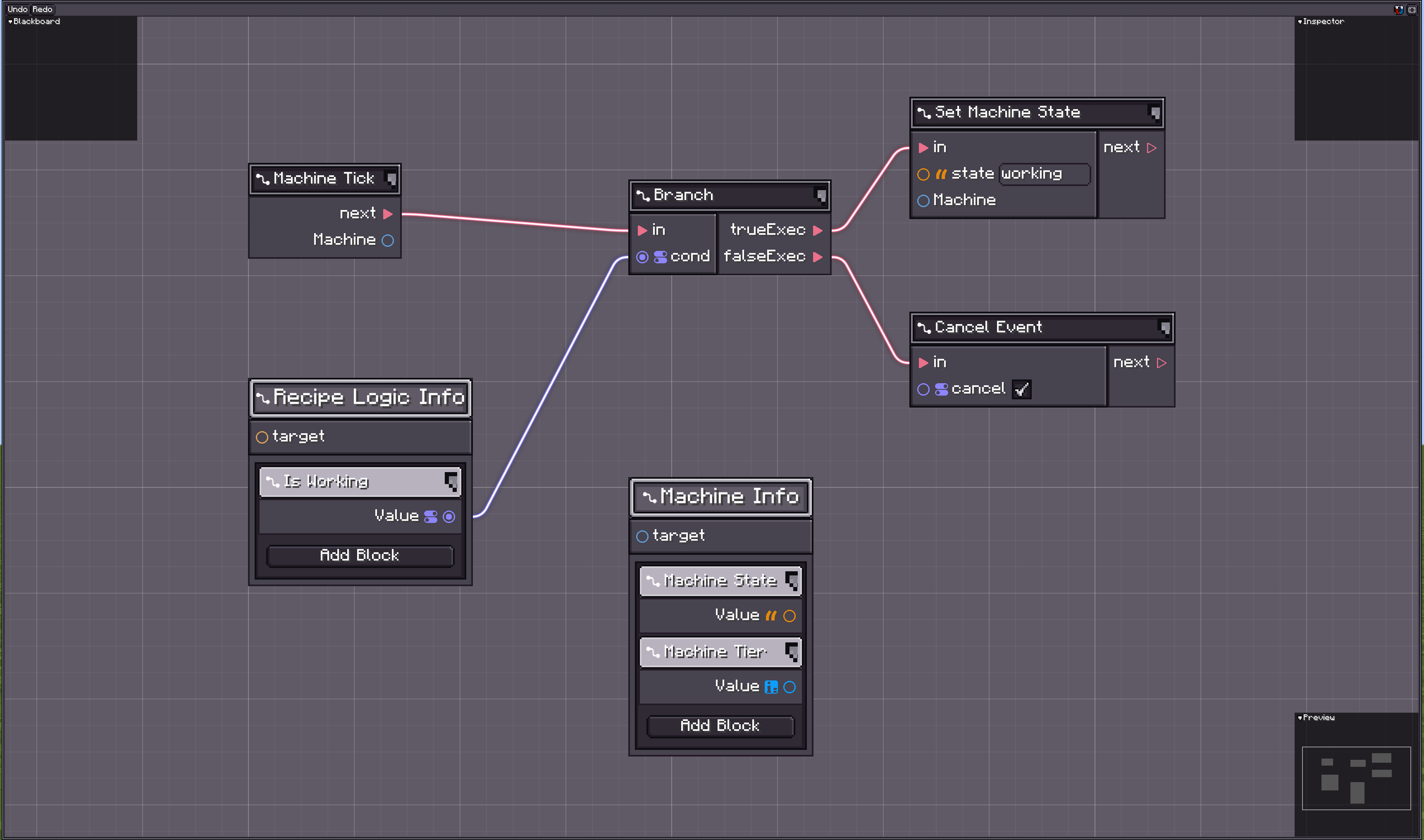

A blueprint graph: an event entry node on the left, reads below it, a decision in the middle, and machine actions on the right.

When to use one

You want	Use
Behaviour that ships with the machine, editable in game	A blueprint
Behaviour a modpack author overrides per pack	KubeJS
A new storage model, content type, or condition	Java
Amount, duration, or parallel scaling	Recipe modifiers first — they are cheaper

Blueprints and KubeJS handlers coexist: both receive the same event, blueprints first.

The shortest useful one

MBD2 ships twelve worked blueprints. The smallest is redstone_control — an event, a read, a decision, a write:

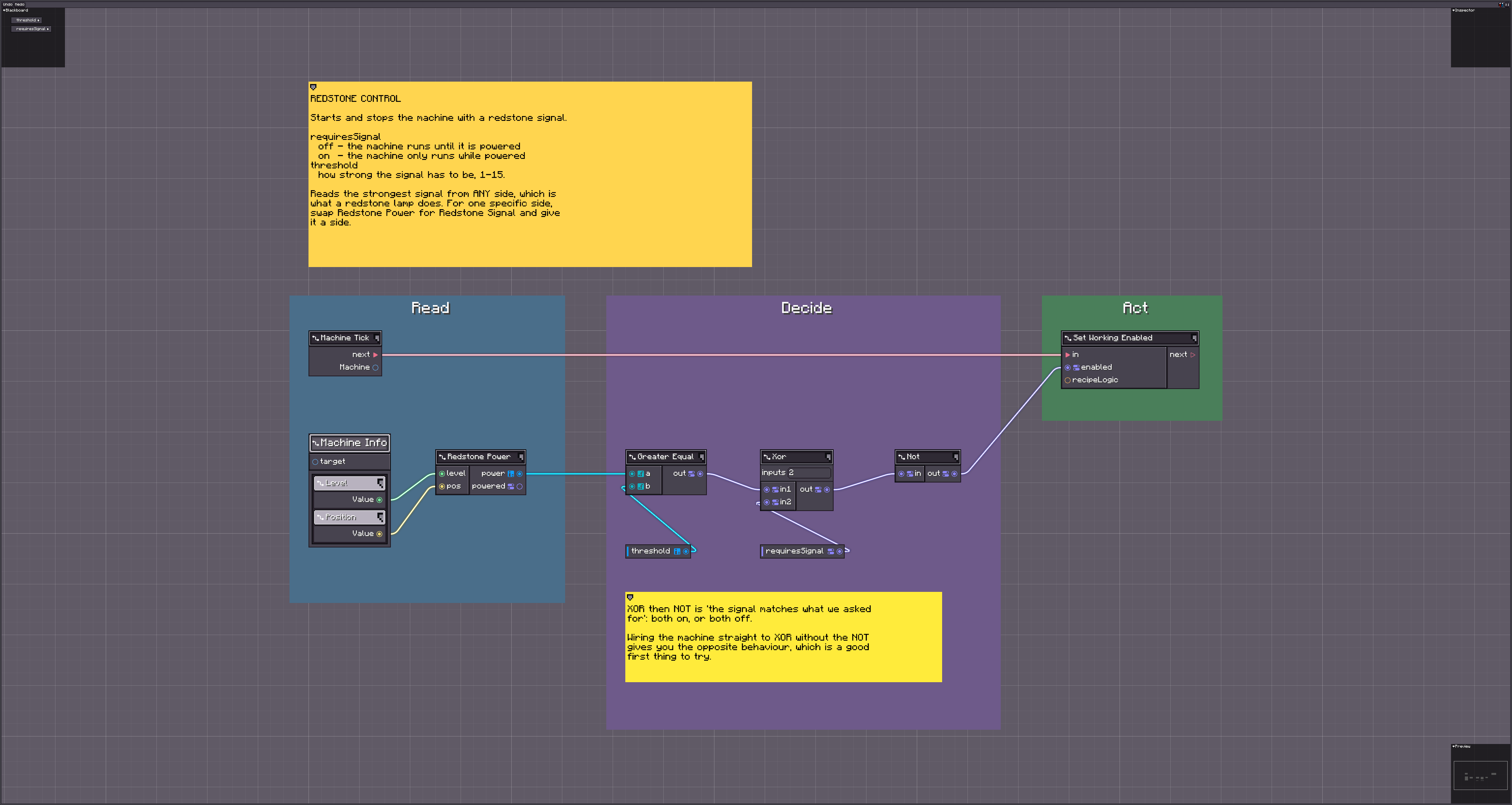

`built-in(mbd2:redstone_control)`. The yellow notes are part of the graph — every built-in explains itself on its own canvas.

Bind it to a machine, set requiresSignal and threshold in the machine's Inspector, and the machine has redstone control. No graph editing at all.

Read next

Page	Covers
Concepts	Events, the machine target, parameters, binding, execution and failure
Node reference	What is in the palette, by group
Built-in blueprints	The twelve MBD2 ships, their parameters and what each one teaches

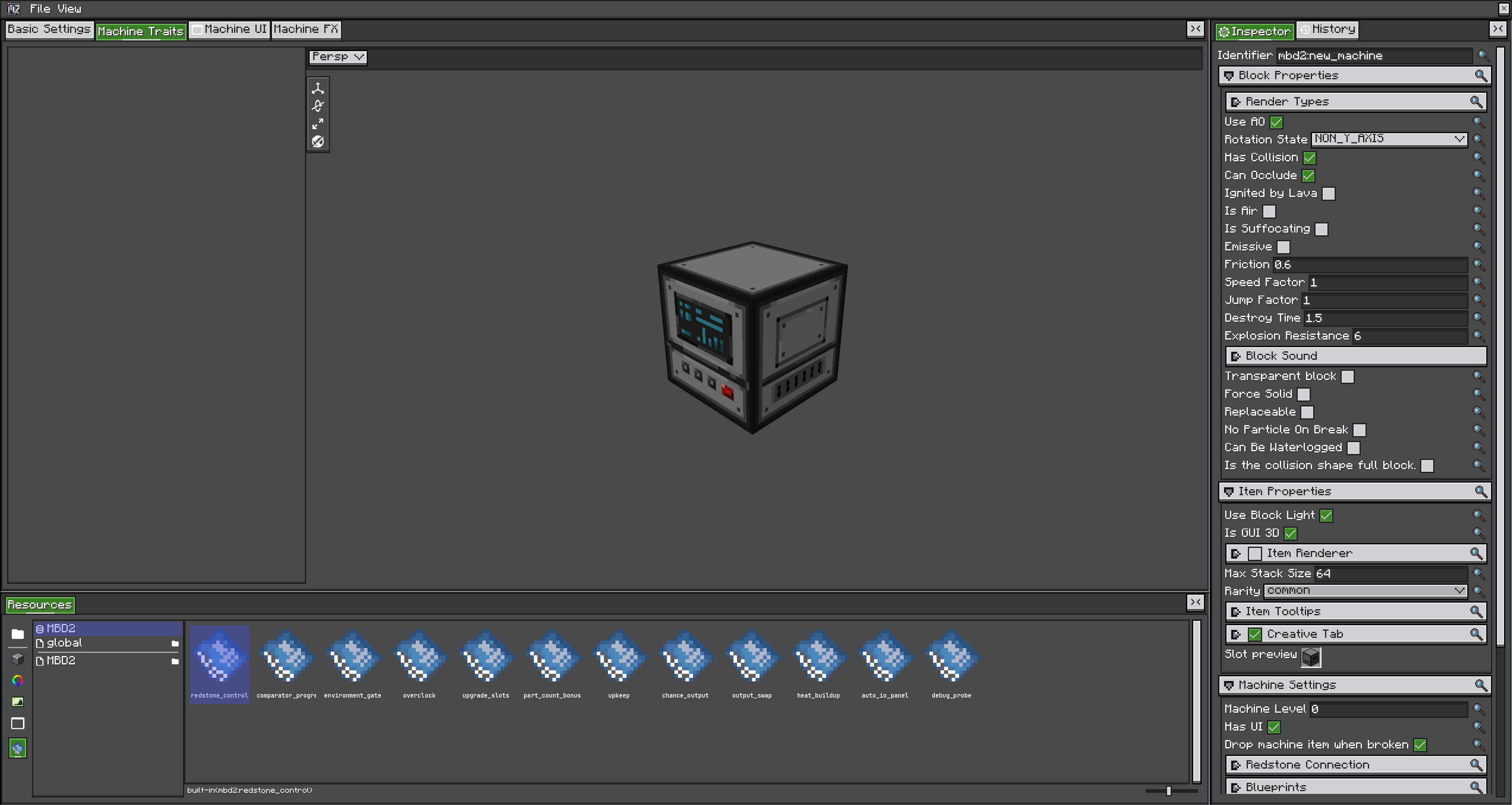

The blueprint library, in the editor's Resources pane.

Requirements

Blueprints need KilaGraph 21.1.0.12 or newer, which MBD2 depends on. The palette is KilaGraph's ~300 generic nodes (math, logic, string, list, map, flow, mc.*) plus MBD2's 235 machine nodes.

Where the graphs live

A blueprint is a .bp resource in the editor's blueprint library, or a built-in MBD2 ships in memory. A binding either references one by path or inlines a snapshot into the machine.
