Recipe System

MBD2 21.1.1

An MBDRecipeType groups MBD recipes. A machine selects one recipe type; recipe logic finds a matching recipe by asking its traits to handle each input and output capability.

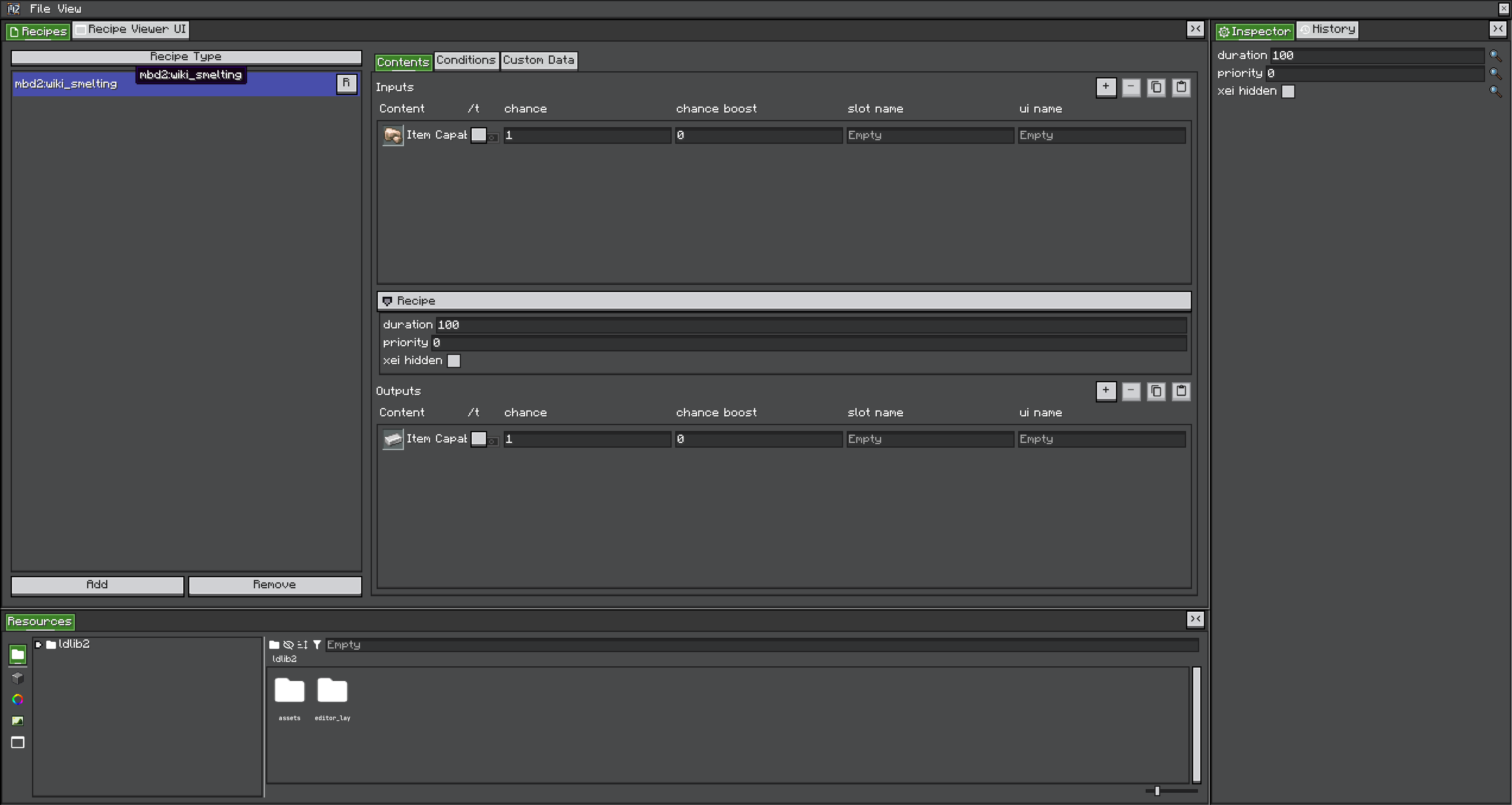

A Recipe Type project owns its built-in recipes, fuel settings, proxy sources, and viewer visibility.

Recipe contents

Each entry has a direction (input or output) and a RecipeCapability. Entries can also be:

Field	Meaning
perTick	Consume or produce while the recipe works instead of at its boundary
chance	Base probability for this entry
tierChanceBoost	Additional probability per machine level
slotName	Limit handling to Traits advertising that slot name
uiName	Bind display to a named recipe-viewer widget

duration defaults to 100 ticks in the KubeJS builder. priority orders candidates — lower values are tried first. Use KubeJS recipes for runnable builder examples.

Conditions and custom data

Conditions are evaluated before work begins and again while the recipe works. Recipe custom data is an NBT compound available to machine logic, blueprints and event integrations; it does not create a Trait or change behaviour on its own.

Changing a recipe at runtime

Want	Use
Scale amounts, duration or parallel	Recipe modifiers on the machine's recipe logic
Change what a recipe trades	A blueprint on Recipe Modify (Before), or KubeJS
Reject a candidate	A RecipeCondition, not an event

Next: Capabilities and conditions.
