Ars Nouveau

Since 21.1.1

Ars Nouveau integration adds Source as a recipe capability, two ways of paying for it, and a condition that only looks. Source is a plain integer everywhere in Ars Nouveau, so there is nothing to model beyond an amount.

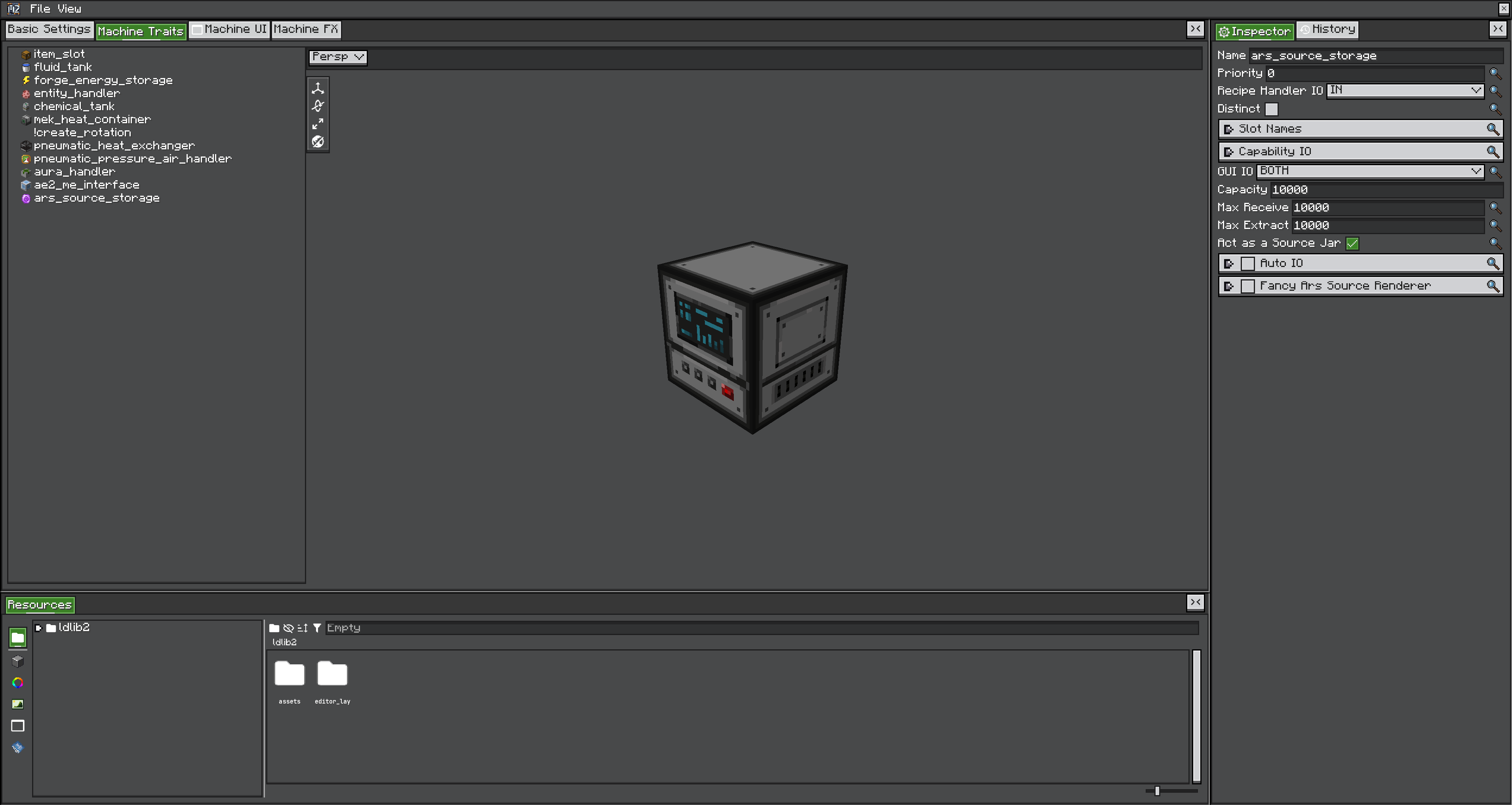

The `ars_source_storage` Trait: a Source buffer the machine carries itself.

What is added

Layer	Registry name	Purpose
Recipe capability	ars_source	Integer Source input/output
Trait	ars_source_storage	A Source buffer on the machine, exposed as an Ars Nouveau capability
Trait	ars_nearby_source	Spends the Source in the jars around the machine
Condition	ars_source_nearby	Checks nearby Source without spending it
KubeJS	inputSource(int), outputSource(int), arsSourceNearbyCondition(radius, min, max)

All entries are conditional on mod ID ars_nouveau.

Two ways to pay

A recipe written against ars_source works with either trait. Pick one:

	ars_source_storage	ars_nearby_source
Where Source comes from	A buffer on the machine	Source jars within radius
Wiring needed	Relays or auto IO fill the buffer	None — drops into an existing jar farm
Exposes a capability	Yes, per side	No
Auto IO	Yes	No
Visible to other Ars devices	With expose_to_devices	n/a

They are mutually exclusive

ars_nearby_source declares itself incompatible with ars_source_storage, so a machine can carry one or the other. Both answer the same capability, and with expose_to_devices on, the buffer would also be one of the providers the scan counts — a machine holding 60 Source next to no jars would advertise 120 and start a recipe it cannot pay for.

A machine that wants both a buffer and a supply from the neighbourhood already has one: the storage trait's auto IO pulls from an adjacent Source Jar.

Source storage

Setting	Default	Meaning
capacity	10000	Buffer size
maxReceive / maxExtract	10000	External transfer limits — not the recipe's cost
exposeToDevices	on	Whether the rest of Ars Nouveau can see this machine as a Source provider
Auto IO, capability IO, fancy renderer		As for any storage trait

Structurally this is the Ars Nouveau twin of forge_energy_storage, plus the provider registration that makes relays and devices see the machine at all.

Nearby source

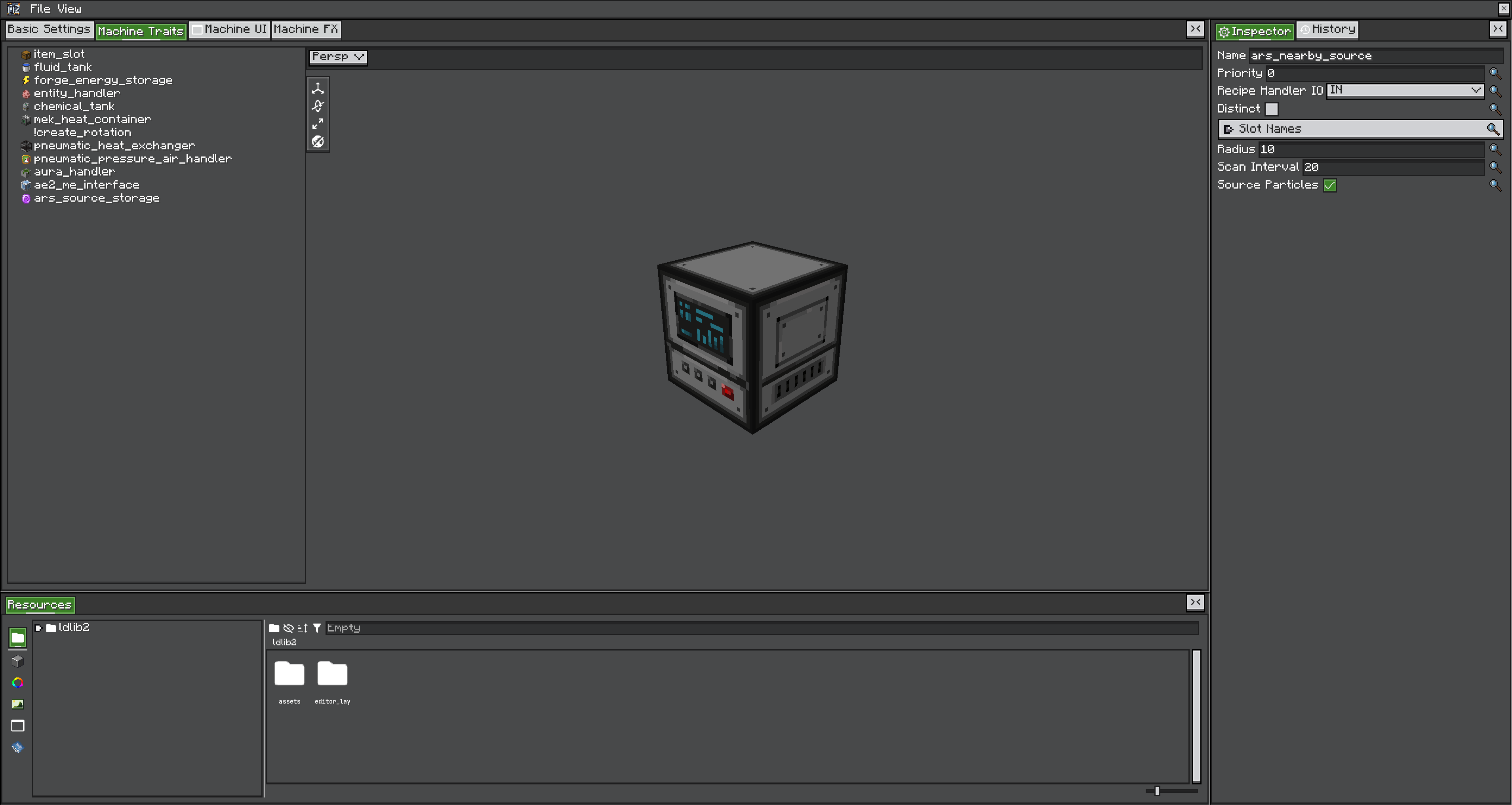

`ars_nearby_source`: how every Ars Nouveau device except the relays works.

Setting	Range	Default	Meaning
radius	1–64	10	How far to look for jars
scanInterval	1–200	20	Ticks between scans
particles		on	Draw the take/give particle trail

Why there is a scan interval

Recipe matching runs on a background executor, and counting jars walks the block entities in range — which is not safe off the game thread. The simulate half answers from a cache the server tick refreshes every scanInterval ticks. Lowering it makes the machine react faster and costs a scan more often; raising it does the reverse.

Consequently the trait cannot be optimistic during simulation the way aura_handler is: per-tick IO runs whenever the match succeeded, so an optimistic answer would let a per-tick Source cost run for free.

Recipes

ServerEvents.recipes(event => {
  // spend Source
  event.recipes.example.source_infuser()
    .id('example:source_infused_stone')
    .duration(100)
    .inputSource(250)
    .inputItems('minecraft:stone')
    .outputItems('minecraft:amethyst_block')

  // produce Source
  event.recipes.example.source_infuser()
    .id('example:source_generation')
    .duration(100)
    .inputItems('minecraft:amethyst_shard')
    .outputSource(500)
})

Put the content inside perTick(...) for a continuous drain, exactly as with FE.

Condition

ServerEvents.recipes(event => {
  event.recipes.example.source_infuser()
    .id('example:only_when_stocked')
    .duration(100)
    .arsSourceNearbyCondition(8, 500, 10000)   // radius, min, max
    .inputItems('minecraft:stone')
    .outputItems('minecraft:calcite')
})

arsSourceNearbyCondition spends nothing. Use it for a recipe that should only run in a well-stocked area — or, with setReverse, only in a depleted one. Its count is taken live rather than from ars_nearby_source's cache, so it works on any machine and never depends on another trait's IO direction.

A recipe that must both check and consume needs the condition and inputSource.

Failure checklist

• Trait missing in the editor: Ars Nouveau was absent during registry discovery.
• Recipe never starts with ars_nearby_source: check radius, and remember the cache is up to scanInterval ticks old.
• Other Ars devices ignore the machine: exposeToDevices is off, or the machine uses ars_nearby_source, which exposes nothing.
• Cannot add both Source traits: expected — see above.
