Hybrid Tutorial: Editor Machine with KubeJS Recipes

MBD2 21.1.1

This is the recommended production workflow for a modpack-friendly machine: the editor owns the complete machine and recipe-type definitions, Java registers those exported products, and KubeJS owns recipes and optional behavior.

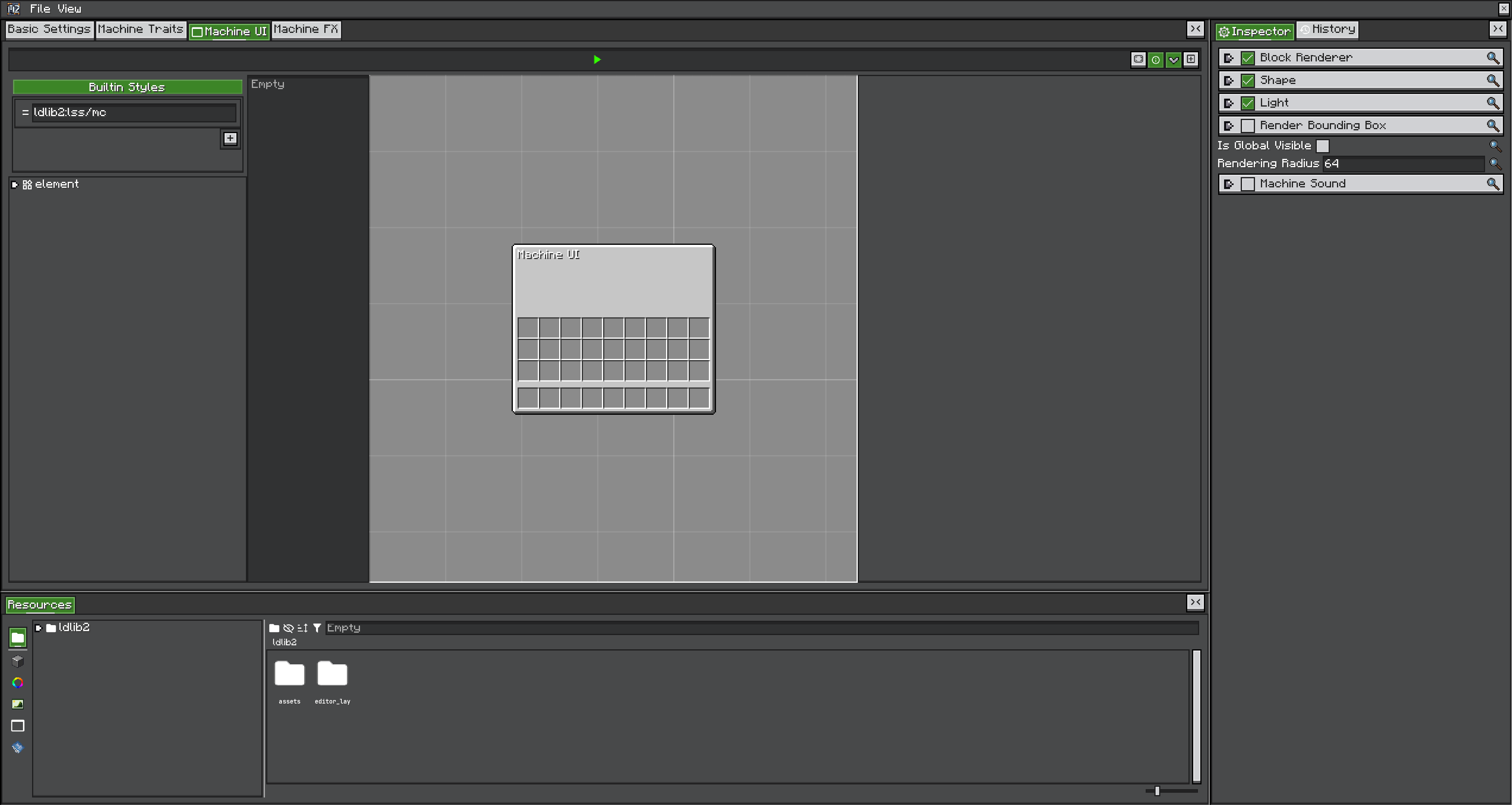

In the hybrid workflow the exported project owns this UI, while KubeJS supplies the recipes bound into it.

Ownership model

Layer	Owner	Why
Machine states, renderer, Traits, UI, pattern	Editor product registered by Java	Full supported authoring model
Recipe-type UI and proxies	Editor .rt product registered by Java	Stable viewer/runtime configuration
Individual recipes	KubeJS server scripts	Pack authors can reload and override them
Special behavior	KubeJS targeted events or Java extension	Choose by complexity and simulation needs

Do not also call MBDRegistryEvents.machine.create or createRecipeType for IDs that Java already registers.

1. Register only the exported definitions in Java

@Mod(ExampleMod.MOD_ID)
public final class ExampleMod {
    public static final String MOD_ID = "examplemod";

    public ExampleMod(IEventBus modBus) {
        modBus.addListener(MBDContent::registerRecipeTypes);
        modBus.addListener(MBDContent::registerMachines);
    }
}

public final class MBDContent {
    public static void registerRecipeTypes(MBDRegistryEvent.MBDRecipeType event) {
        event.registerFromResource(
            ExampleMod.class,
            "examplemod/mbd/recipe_types/crushing.rt"
        );
    }

    public static void registerMachines(MBDRegistryEvent.Machine event) {
        event.registerFromResource(
            ExampleMod.class,
            "single_machine",
            "examplemod/mbd/machines/crusher.sm"
        );
    }
}

The .sm product must reference the same examplemod:crushing ID stored by the .rt product.

2. Do not create startup definitions in KubeJS

No MBDRegistryEvents.recipeType or MBDRegistryEvents.machine script is needed. After a full restart, MBD2's KubeJS plugin sees the Java-registered recipe type and generates:

event.recipes.example.crushing()

If that builder is absent, fix Java/resource registration first; creating a duplicate KubeJS type would hide the real ownership problem.

3. Add pack recipes

// kubejs/server_scripts/examplemod_crushing.js
ServerEvents.recipes(event => {
  event.recipes.example.crushing()
    .id('examplepack:crushing/iron')
    .duration(100)
    .inputItems('#c:ingots/iron')
    .outputItems('9x minecraft:iron_nugget')

  event.recipes.example.crushing()
    .id('examplepack:crushing/wet_copper')
    .duration(160)
    .inputItems('#c:ingots/copper')
    .perTick(r => r.inputFE(40))
    .slotName('water_input', r =>
      r.inputFluids('250x minecraft:water'))
    .outputItems('minecraft:copper_block')
})

The machine product must provide item, fluid, and FE handlers matching these contents. slotName('water_input', ...) additionally requires a Trait definition whose slotNames contains water_input; the Trait name itself is a different identifier.

4. Add behavior only where the recipe engine cannot express it

MBDMachineEvents.onRecipeStatusChanged('examplemod:crusher', wrapper => {
  const { machine, oldStatus, newStatus } = wrapper.event
  console.debug(`${machine.definition.id()}: ${oldStatus} -> ${newStatus}`)
})

MBDMachineEvents.onRecipeWaiting('examplemod:crusher', wrapper => {
  const logic = wrapper.event.machine.recipeLogic
  console.debug(`Crusher waiting: ${logic.waitingReason}`)
})

Use recipe conditions for eligibility and Traits/handlers for resource accounting. Events should not duplicate inputs, outputs, simulation, or progress management.

5. Reload matrix

Changed file	Required action
KubeJS server recipe/event script	/reload normally suffices
KubeJS startup registry script	Full restart
Java class or dependency	Recompile and restart
Packaged .rt, .sm, .mb	Rebuild resources and restart
Editor working project not yet exported	Export product, then restart registration

6. Acceptance test

1. Start with no startup-script errors.
2. Confirm Java logs load examplemod:crushing before examplemod:crusher.
3. Give/place examplemod:crusher.
4. Confirm UI widgets bind to the authored Traits.
5. Confirm the KubeJS recipe appears in JEI/REI/EMI.
6. Insert all normal inputs and provide per-tick resources.
7. Observe IDLE -> WORKING -> IDLE and verify outputs once.
8. /reload, change only recipe duration, and confirm the next execution uses the new value.

If a recipe appears but does not run, use the RecipeLogic search/setup flow to check conditions, normal output capacity, per-tick IO, and Trait routing in that order.
