Create

MBD2 21.1.1

Create integration models rotation as one value containing RPM and stress. It adds recipe content, a range condition, a machine Trait, and rotation rendering support.

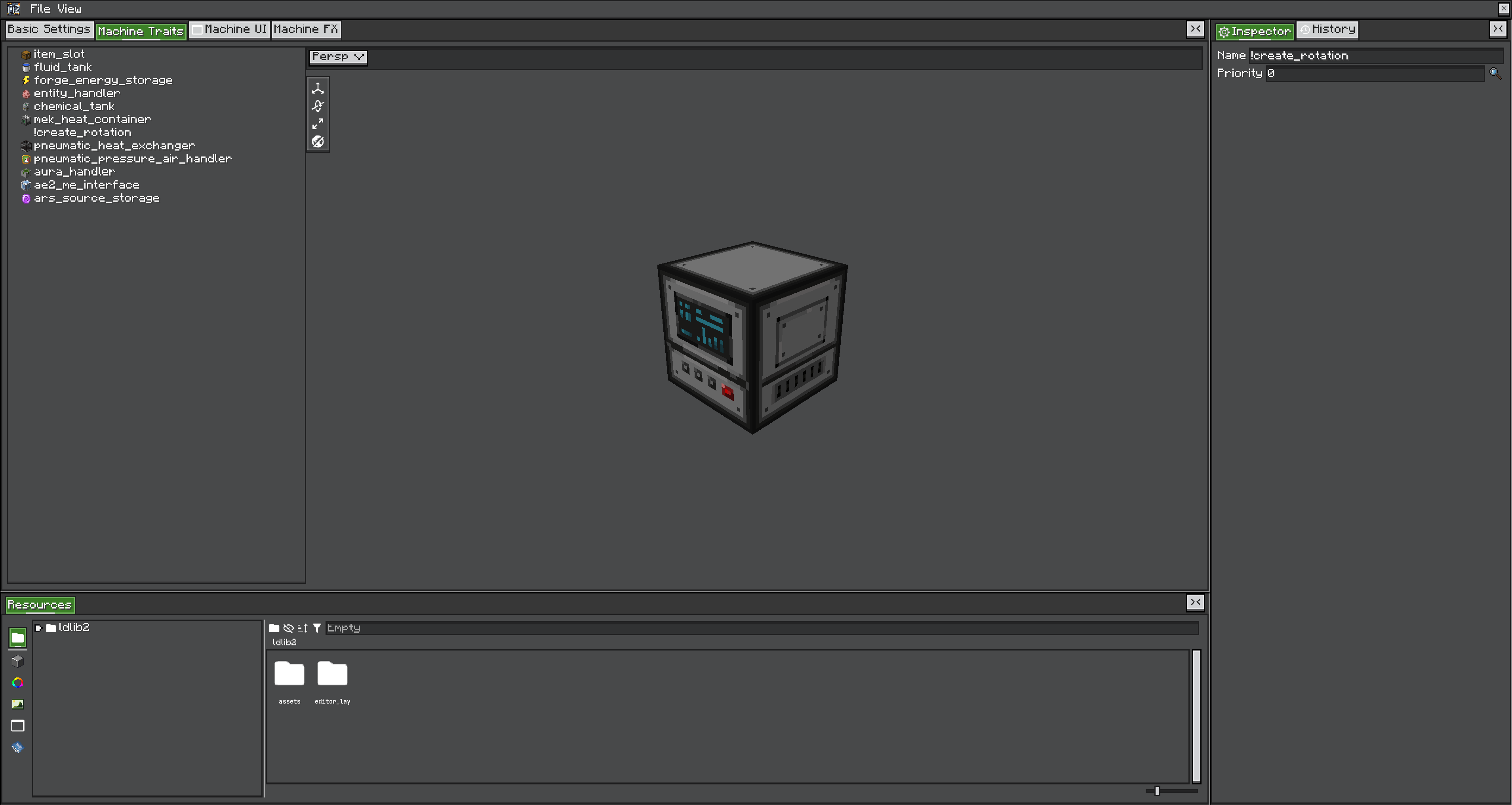

The mandatory `!create_rotation` Trait supplied by a Create kinetic machine definition.

Active surface

Layer	Name	Meaning
Recipe capability	create_rotation	CreateRotation value tagged as RPM or stress
Condition	create_rotation	Min/max RPM and min/max stress
Trait	!create_rotation	Runtime Create network bridge and recipe handler
UI element	create-rotation-element	Rotation display/control in authored UI
Machine definition type	create_machine	Source-registered Java definition type

The Trait begins with ! because it is mandatory/internal for the Create machine definition. It does not mean negation.

Authoring rules

RPM is speed; stress is network load/capacity semantics. They are not interchangeable even though both use the same capability. Use inputRPM/outputRPM or inputStress/outputStress according to the desired field.

ServerEvents.recipes(event => {
  event.recipes.example.press()
    .id('example:rotation_pressing')
    .duration(100)
    .inputRPM(64)
    .inputStress(8)
    .rotationCondition(32, 256, 4, 128)
    .inputItems('minecraft:iron_ingot')
    .outputItems('minecraft:iron_block')
})

The condition checks all four bounds and consumes nothing. Capability content is handled by the rotation Trait.

Where the Trait comes from

You do not add !create_rotation from the Add Trait menu — a Create Kinetic Machine project supplies it. Create one in /mbd2_editor, export its .cm product, and register it from Java under the type key create_machine:

event.registerFromResource(ExampleMod.class, "create_machine",
        "examplemod/mbd/machines/mechanical_press.cm");

No KubeJS builder key

MBDRegistryEvents.machine accepts single and multiblock only; event.create('kinetic', ...) throws Unknown machine type. Adding rotation recipe rows to an ordinary machine does not create a shaft node either — the machine has to be a kinetic definition.

Validation

Confirm the machine joins the kinetic network, the shaft face matches orientation, current RPM/stress falls inside the condition, disconnecting the shaft stops matching, and recipe input/output values change network behaviour as intended. The editor preview cannot prove membership in a live kinetic network; test rotation direction and the zero-speed and disconnected states in game.
