UI Behavior

Applies to Minecraft 1.21.1 / MBD2 21.1.1UI API LDLib2 2.2.39

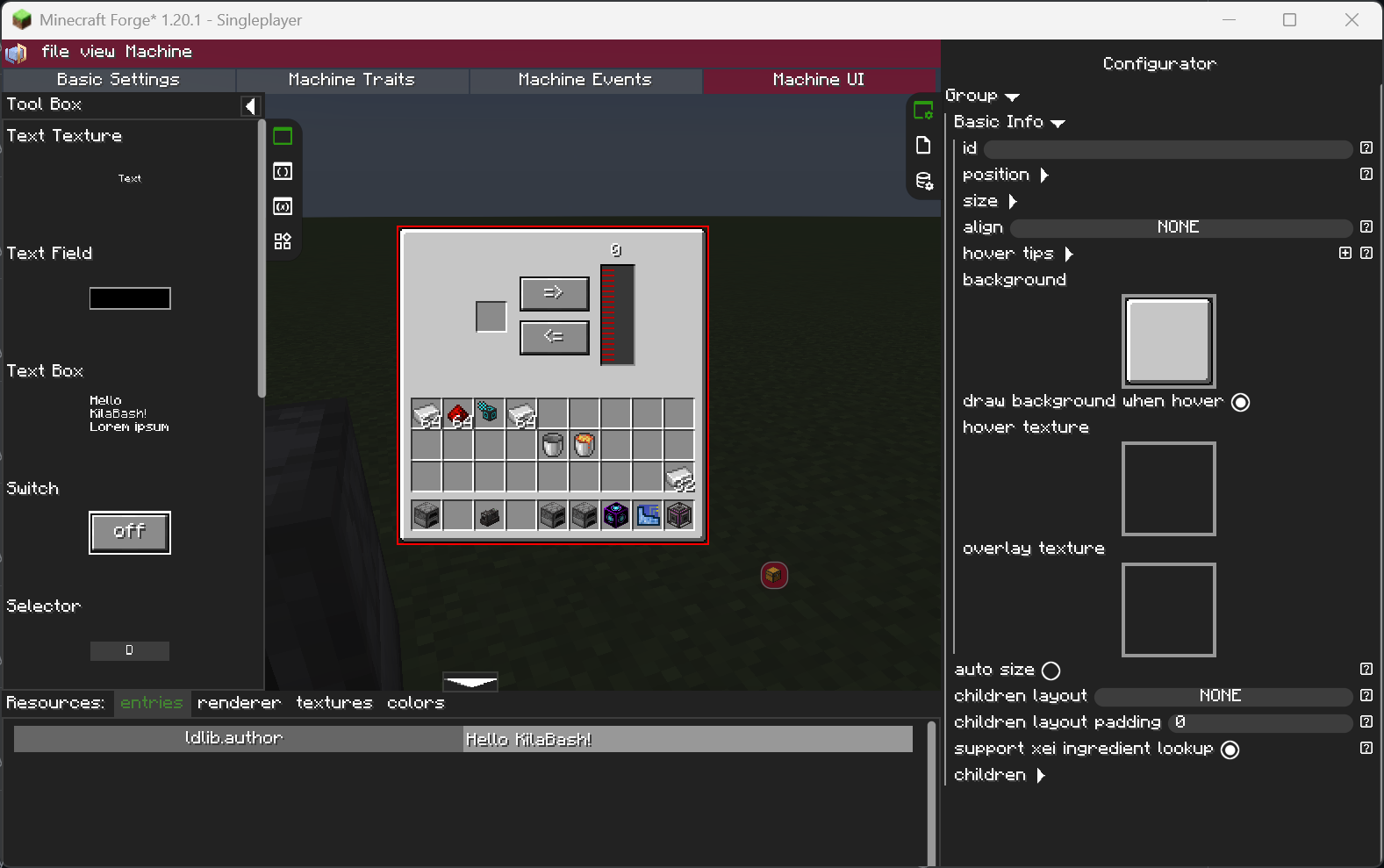

Create the UIElement tree and stable IDs in the editor, then attach runtime behavior with KubeJS.

MBDMachineEvents.onUI still exists in 1.21.1, but wrapper.event.ui is now an LDLib2 2.x UI, not the WidgetGroup used by old 1.20.1 documentation. Element queries, event names, and server callbacks must use the new framework.

1.21.1: attach server behavior to an editor button

Current API Minecraft 1.21.1

// kubejs/server_scripts/mbd2_ui.js
MBDMachineEvents.onUI('example:crusher', wrapper => {
  const { machine, ui, player } = wrapper.event

  // UI.selectId returns a Java Stream. The ID comes from the editor UIElement.
  const flush = ui.selectId('flush_button').findFirst().orElse(null)
  if (flush === null) {
    console.warn('Missing UI element #flush_button on example:crusher')
    return
  }

  // Authoritative machine changes belong in a server event listener.
  flush.addServerEventListener(UIEvents.MOUSE_DOWN, click => {
    if (click.button !== 0) return

    const output = machine.getTraitByName('output_items')
    if (output === null) return

    // Extract through the handler; do not mutate returned ItemStacks in place.
    for (let slot = 0; slot < output.storage.slots; slot++) {
      output.storage.extractItem(slot, 64, false)
    }
  })
})

Place this in server_scripts: MBD2 onUI is a targeted server-side machine event. LDLib2 synchronizes the UI RPC behavior registered by addServerEventListener to the corresponding client element.

Change what an element shows

A listener leaves the UI looking exactly as the editor drew it. To change the tree itself, write to the elements you selected:

// kubejs/server_scripts/mbd2_ui.js
MBDMachineEvents.onUI('example:crusher', wrapper => {
  const { machine, ui } = wrapper.event

  const status = ui.selectId('status_label').findFirst().orElse(null)
  if (status !== null) {
    // The one-argument setText is hidden from scripts. Pass false to use the string
    // literally; true would treat it as a translation key.
    status.setText(`Crusher — ${machine.machineStateName}`, false)
  }

  const flush = ui.selectId('flush_button').findFirst().orElse(null)
  if (flush !== null) {
    flush.setText('Flush Output (scripted)', false)
  }
})

The same machine UI without the script (left) and after onUI ran (right). The caption is written from live machine state, which the editor cannot know when the panel is authored.

TIP

setText(String) and setText(Component) are hidden from scripts. Use the two-argument setText(text, translate) or pass a Component; a one-argument string call fails with "no such method".

Selecting elements

Current UI LDLib2 2.2.x

const byId = ui.selectId('status_label').findFirst().orElse(null)
const allButtons = ui.select('.action').toList()
const typed = ui.selectId('progress', ProgressBar).findFirst().orElse(null)
const allBars = ui.select('progress-bar', ProgressBar).toList()
const root = ui.rootElement

API	Result	Use
ui.selectId(id)	Stream<UIElement>	Exact ID lookup
ui.select(selector)	Stream<UIElement>	LDLib2 selector — type name, .class, #id
ui.selectRegex(regex)	Stream<UIElement>	IDs matching a pattern
ui.selectId(id, Type) / ui.select(selector, Type)	Stream<Type>	Constrained by element type
ui.rootElement	UIElement	Edit the tree or append elements

ProgressBar, Button, ItemSlot, Label and the rest of LDLib2's elements are global bindings, so no Java.loadClass is needed for the typed forms.

Do not mix ModularUI.getElementById(...) with UI.selectId(...): onUI exposes the UI description before it is wrapped in a ModularUI.

Client visuals and server behavior

MBDMachineEvents.onUI is registered as a server machine event in 21.1.1. Use it for addServerEventListener, server data sources, or replacing the server-created UI. A normal addEventListener is a client listener; do not assume a JavaScript lambda created by this server callback becomes client script code.

To construct both client and server UI from KubeJS, use LDLib2 LDLib2UI.block/item/player and register the same ID on both sides as its documentation describes. Use LDLib2 data binding or server events/RPC for synchronized data. Continue with:

• LDLib2 KubeJS UI support
• LDLib2 UI Factory and script placement
• UIElement selectors, events, and server listeners
• Data bindings
• UI event propagation

Legacy 1.20.1 syntax: migration reference only

Legacy; not valid on 1.21.1 Minecraft 1.20.1 / MBD2 1.0.x

// ❌ Old Widget API. These methods do not exist on the 1.21.1 UI.
const button = event.event.ui.getFirstWidgetById('example:flush')
button.setOnPressCallback(click => { /* ... */ })

1.20.1 Widget API	1.21.1 LDLib2 UI API
getFirstWidgetById(id)	ui.selectId(id).findFirst().orElse(null)
setOnPressCallback(...)	addEventListener(...) or addServerEventListener(...)
isRemote checks in Widget callbacks	Select a client listener or server listener explicitly
WidgetGroup hierarchy	UIElement tree, selectors, and LSS

WARNING

onUI can replace event.ui, but most packs should query and enhance the editor-generated tree. For a fully script-built standalone UI, use the LDLib2 LDLib2UI.* factories instead of treating a machine UI as a generic window factory.
