Event

Since 2.1.0

LDLib2 UI provides events that communicate user actions or notifications to UI elements. The event system shares the same terminology and event naming as HTML events.

---

Dispatch events

The event system listens for events that come from the ModularUI or mannually triggers, then uses the UIEventDispatcher to dispatch those events to UI elements. The event dispatcher determines an appropriate dispatching strategy for each event it sends. Once determined, the dispatcher executes the strategy.

Event propagation

Each event phase has its own dispatch behavior. The behavior of each event type breaks down into two stages:

• Capture Phase: Events sent to elements during the capture-down phase.
• Bubbles Phase: Events sent to elements during the bubble-up phase.

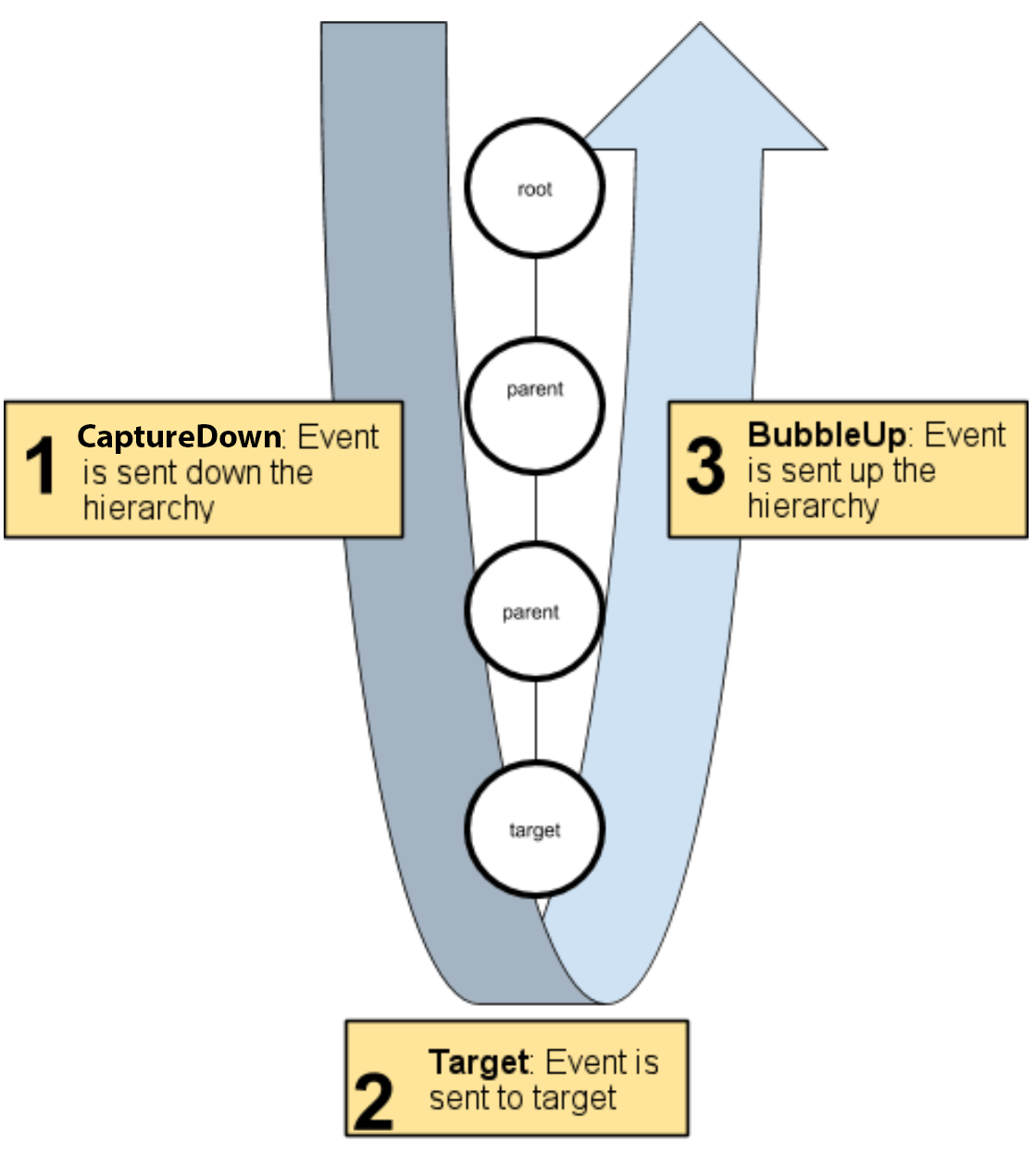

After the event dispatcher selects the event target, it computes the propagation path of the event. The propagation path is an ordered list of UI elements that receive the event. The propagation path occurs in the following order:

1. The path starts at the root of the UI element tree and descends towards the target. This is the capture-down phase.
2. The event target receives the event.
3. The event then ascends the tree towards the root. This is the bubble-up phase.

Propagation path

Most event are sent to all elements along the propagation path. Some event skip the bubble-up phase, and some event are sent to the event target only.

Event target

As a UIEvent travels along the propagation path, UIEvent.currentElement is updated to the element that is currently handling the event. This makes it easy to know “which element is running my listener right now”.

Within an event listener, LDLib2 distinguishes two important element references:

• UIEvent.target: the element where the event originated (the dispatch target).
• UIEvent.relatedTarget(Optional): the other element may be involved in some events.
• UIEvent.currentElement: the element whose listener is currently being executed.

target is determined before dispatch begins and does not change during propagation.
currentElement changes as the dispatcher moves through the tree (capture → target → bubble).

Stopping propagation

LDLib2 provides two levels of cancellation:

• event.stopPropagation()
  Stops the event from reaching later elements and later phases (capture/bubble will cease).

• event.stopImmediatePropagation()
  Stops other listeners on the current element from running, and also stops further propagation.

---

Register event listeners

LDLib2 uses a DOM-like event model: events travel through the UI tree and a listener can be registered for either:

• Bubble phase (default)
• Capture phase (set useCapture = true)

Use addEventListener(eventType, listener) to register a bubble-phase listener:

var root = new UIElement().setId("root");
var button = new UIElement().setId("button");
root.addChild(button);

// UIEvents.CLICK == "mouseClick"
button.addEventListener(UIEvents.CLICK, e -> {
    LDLib2.LOGGER.info("Bubble listener: current={}, target={}",
            e.currentElement.getId(), e.target.getId());
});

let root = new UIElement().setId("root");
let button = new UIElement().setId("button");
root.addChild(button);

// UIEvents.CLICK == "mouseClick"
button.addEventListener(UIEvents.CLICK, e => {
    console.log(`Bubble listener: current=${e.currentElement.getId()}, target=${e.target.getId()}`);
});

To register a capture-phase listener, pass true as the third argument:

root.addEventListener(UIEvents.CLICK, e -> {
    LDLib2.LOGGER.info("Capture: current={}, target={}",
            e.currentElement.getId(), e.target.getId());
}, true);

root.addEventListener(UIEvents.CLICK, e => {
    console.log(`Capture: current=${e.currentElement.getId()}, target=${e.target.getId()}`);
}, true);

We also provide method allow you to listen events on the server. Events are triggered on the client-side and sync to the server. Not all events support server listeners, check Event reference below.

root.addServerEventListener(UIEvents.CLICK, e -> {
    LDLib2.LOGGER.info("Triggered on the server";
});

root.addServerEventListener(UIEvents.CLICK, e => {
    console.log("Triggered on the server");
});

To remove a listener, call removeEventListener(...). Make sure the useCapture flag matches how the listener was registered:

UIEventListener onClick = e -> LDLib2.LOGGER.info("clicked!");

button.addEventListener(UIEvents.CLICK, onClick);       // bubble
root.addEventListener(UIEvents.CLICK, onClick, true);   // capture

button.removeEventListener(UIEvents.CLICK, onClick);          // remove bubble listener
root.removeEventListener(UIEvents.CLICK, onClick, true);      // remove capture listener

let onClick = UIEventListener.creatre(e => LDLib2.LOGGER.info("clicked!"));

button.addEventListener(UIEvents.CLICK, onClick);       // bubble
root.addEventListener(UIEvents.CLICK, onClick, true);   // capture

button.removeEventListener(UIEvents.CLICK, onClick);          // remove bubble listener
root.removeEventListener(UIEvents.CLICK, onClick, true);      // remove capture listener

---

Event reference

LDLib2 raises an event when a user interacts with and changes the state of elements. The event design is similar to the Event interface for HTML elements.

Event types fit into a hierarchy based on the UIEvent.class. Each event family implements an interface that defines the common characteristics of all events of the same family.

Here, we list common events available for all ui elemetns below. Select any of the event types listed below for more information on the event, and links to the API documentation.

INFO

We'd recommend to use UIEvents.xxx instead of an event type string.

Mouse Events

Mouse Events are most used events. Event sent after a handler starts capturing the mouse.

Event	Description	Capture down	Bubbles up	Support Server
mouseDown	Fired when the user presses a mouse button.	✅	✅	✅
mouseUp	Fired when the user releases a mouse button.	✅	✅	✅
mouseClick	Fired when the user clicks a mouse button (press + release).	✅	✅	✅
doubleClick	Fired when the user double-clicks a mouse button.	✅	✅	✅
mouseMove	Fired when the mouse moves over the element.	✅	✅	✅
mouseEnter	Fired when the mouse enters an element or one of its descendants.	✅	❌	✅
mouseLeave	Fired when the mouse leaves an element or one of its descendants.	✅	❌	✅
mouseWheel	Fired when the user scrolls the mouse wheel.	✅	✅	✅

Field	Description	Supported Event
x	mouse position x	All
y	mouse position y	All
button	mouse button code (0 - left, 1 - right, 2 - middle, others...)	mouseDown mouseUp mouseClick doubleClick
deltaX	scroll delta x	mouseWheel
deltaY	scroll delta y	mouseWheel

Usage

elem.addEventListener(UIEvents.DOUBLE_CLICK, e -> {
    LDLib2.LOGGER.info("double click {} with button {}", e.target, e.button)
});

elem.addEventListener(UIEvents.DOUBLE_CLICK, e => {
    console.log(`double click ${e.target} with button ${e.button}`)
});

---

Drag and Drop Events

Drag and drop events are dispatched during drag operations. These events are client-side only and will not be sent to the server.

Event	Description	Capture down	Bubbles up	Support Server
dragEnter	Fired when the pointer enters an element during a drag operation.	✅	❌	❌
dragLeave	Fired when the pointer leaves an element during a drag operation.	✅	❌	❌
dragUpdate	Fired when the pointer moves over an element during dragging.	✅	✅	❌
dragSourceUpdate	Fired on the drag source while dragging.	✅	❌	❌
dragPerform	Fired when the dragged object is released over an element.	✅	❌	❌
dragEnd	Fired on the drag source when the drag operation ends.	✅	❌	❌

Field	Description	Supported Event
x	mouse position x	All
y	mouse position y	All
relatedTarget	If the relatedTarget is not null, it means the new element entered.	dragLeave
deltaX	dragging delta x	All
deltaY	dragging delta y	All
dragStartX	start position x before dragging	All
dragStartY	start position y before dragging	All
dragHandler	DragHandler is used to handle drag events.	All

All drag events will only be triggered after the drag is started startDrag. The drag and drop lifecycle is as follows:

1. To trigger dragging, for example, in mouse events, you can call startDrag.
2. do something with drag events, dragEnter, dragLeave, dragUpdate, and dragSourceUpdate (if th drag source is defined).
3. When the drag is finished, trigger dragPerform, and dragEnd (if th drag source is defined)

Method: #!java DragHandler.startDrag(Object draggingObject, IGuiTexture dragTexture, UIElement dragSource)

Parameters:

• draggingObject: the object being dragged; can be of any type to represent the drag payload
• dragTexture: used to visually represent the drag operation
• dragSource: the UIElement that acts as the source of the drag operation

INFO

dragSourceUpdate and dragEnd are only dispatched to the drag source.

You could also start a drag by using UIElement.startDrag which can help you pass the dragSource directly.

Usage

elem.addEventListener(UIEvents.MOUSE_DOWN, e -> {
    // start drag when the mouse down
    elem.startDrag(null, null);
});
elem.addEventListener(UIEvents.DRAG_SOURCE_UPDATE, e -> {
    LDLib2.LOGGER.info("{} dragged ({}, {})", e.target, e.deltaX, e.deltaY)
});

elem.addEventListener(UIEvents.MOUSE_DOWN, e => {
    // start drag when the mouse down
    elem.startDrag(null, null);
});
elem.addEventListener(UIEvents.DRAG_SOURCE_UPDATE, e => {
    copnsole.log(`${e.target} dragged (${e.deltaX}, ${e.deltaY})`)
});

---

Focus Events

Focus events are dispatched when focusable elements gain or lose focus.

Event	Description	Capture down	Bubbles up	Support Server
focusIn	Fired when an element is about to gain focus.	✅	❌	❌
focus	Fired after an element has gained focus.	✅	❌	✅
focusOut	Fired when an element is about to lose focus.	✅	❌	❌
blur	Fired after an element has lost focus.	✅	❌	✅

Field	Description	Supported Event
relatedTarget	For focusIn and focus, refers to last focused element. For focusOut and blur, refers to last focused element.	All

INFO

• focusIn and focusOut are not sent to the server.
• relatedTarget indicates the element losing or gaining focus.

Usage

elem.setFocusable(true)
elem.addEventListener(UIEvents.MOUSE_DOWN, e -> {
    // request focus
    elem.focus();
});
elem.addEventListener(UIEvents.FOCUS, e -> {
    LDLib2.LOGGER.info("{} gained the focus", elem);
});

elem.setFocusable(true)
elem.addEventListener(UIEvents.MOUSE_DOWN, e => {
    // request focus
    elem.focus();
});
elem.addEventListener(UIEvents.FOCUS, e => {
    console.log(`${elem} gained the focus`);
});

---

Keyboard Events

Keyboard events are dispatched to the element that currently has focus.

Event	Description	Capture down	Bubbles up	Support Server
keyDown	Fired when the user presses a key on the keyboard.	✅	✅	✅
keyUp	Fired when the user releases a key on the keyboard.	✅	✅	✅

Field	Description	Supported Event
keyCode	key code	All
scanCode	sccan code	All
modifiers	modifiers	All

Usage

elem.setFocusable(true)
elem.addEventListener(UIEvents.MOUSE_DOWN, e -> {
    // request focus
    elem.focus();
});
elem.addEventListener(UIEvents.KEY_DOWN, e -> {
    LDLib2.LOGGER.info("key {} pressed", e.keyCode);
});

elem.setFocusable(true)
elem.addEventListener(UIEvents.MOUSE_DOWN, e => {
    // request focus
    elem.focus();
});
elem.addEventListener(UIEvents.KEY_DOWN, e => {
    console.log(`key ${e.keyCode} pressed`)
});

---

Text Input Events

Text input events are used for character-level input, such as typing into text fields, which also dispatched to the element that currently has focus.

Event	Description	Capture down	Bubbles up	Support Server
charTyped	Fired when a character is input into an element.	❌	❌	✅

Field	Description	Supported Event
codePoint	code point	All
modifiers	modifiers	All

Usage

elem.setFocusable(true)
elem.addEventListener(UIEvents.MOUSE_DOWN, e -> {
    // request focus
    elem.focus();
});
elem.addEventListener(UIEvents.CHAR_TYPED, e -> {
    LDLib2.LOGGER.info("key {} pressed", e.codePoint);
});

elem.setFocusable(true)
elem.addEventListener(UIEvents.MOUSE_DOWN, e => {
    // request focus
    elem.focus();
});
elem.addEventListener(UIEvents.CHAR_TYPED, e => {
    console.log(`key ${e.codePoint} pressed`)
});

---

Hover Tooltip Events

Hover tooltip events are dispatched when dynamic tooltip information needs to be shown.

Event	Description	Capture down	Bubbles up	Support Server
hoverTooltips	Fired to provide hover tooltip content for an element.	❌	❌	❌

Field	Description	Supported Event
hoverTooltips	Set your hover tooltips to display	All

TooltipComponent

`hoverTooltips` allow you to append a `TooltipComponent` after text components. You could append a LDLib2 UI into the tooltip by using `ModularUITooltipComponent`.

Usage

elem.addEventListener(UIEvents.HOVER_TOOLTIPS, e -> {
    e.hoverTooltips = HoverTooltips.empty()
        // add text tooltips
        .append(Component.literal("Hello"), Component.literal("World"))
        // add a image
        .tooltipComponent(new ModularUITooltipComponent(new UIElement().layout(layout -> {
            layout.width(100).height(100);
        }).style(style -> style.background(SpriteTexture.of("ldlib2:textures/gui/icon.png")))));
});

elem.addEventListener(UIEvents.HOVER_TOOLTIPS, e => {
    e.hoverTooltips = HoverTooltips.empty()
        // add text tooltips
        .append("Hello", "World");
        // add a image
        .tooltipComponent(new ModularUITooltipComponent(new UIElement().layout(layout => {
            layout.width(100).height(100);
        }).style(style => style.background(SpriteTexture.of("ldlib2:textures/gui/icon.png")))));
});

---

Command Events

Command events are used to handle high-level UI commands (e.g. copy, paste, select all). They follow a validation → execution flow. To claim a command during validateCommand, call UIEvent.stopPropagation().

Event	Description	Capture down	Bubbles up	Support Server
validateCommand	Fired to check whether an element can handle a command.	❌	❌	❌
executeCommand	Fired when a command is executed on an element.	❌	❌	❌

Field	Description	Supported Event
keyCode	key code	All
scanCode	sccan code	All
modifiers	modifiers	All
command	command	All

Commands

Command	Description
copy	ctrl + c
cut	ctrl + x
paste	ctrl + v
select-all	ctrl + a
undo	ctrl + z
redo	ctrl + y / ctrl + shift + z
find	ctrl + f
save	ctrl + s

INFO

If a command input is detected. A command event will be sent to the focus element first (if exists). If it doesn't be consumed, it will be sent to the UI tree elements until an element cconsumes it.

Usage

elem.addEventListener(UIEvents.VALIDATE_COMMAND, e -> {
    if (CommandEvents.COPY.equals(event.command)) {
        // notify cosnuming
        event.stopPropagation();
    }
});

elem.addEventListener(UIEvents.EXECUTE_COMMAND, e -> {
    if (CommandEvents.COPY.equals(event.command)) {
        ClipboardManager.copyDirect("data");
    }
});

elem.addEventListener(UIEvents.VALIDATE_COMMAND, e => {
    if (CommandEvents.COPY == event.command) {
        // notify cosnuming
        event.stopPropagation();
    }
});

elem.addEventListener(UIEvents.EXECUTE_COMMAND, e => {
    if (CommandEvents.COPY == event.command) {
        ClipboardManager.copyDirect("data");
    }
});

---

Layout Events

Layout events are dispatched when the layout state of an element changes.

Event	Description	Capture down	Bubbles up	Support Server
layoutChanged	Fired when the yoga layout of an element changes.	❌	❌	❌

Usage

elem.addEventListener(UIEvents.LAYOUT_CHANGED, e -> {
    LDLib2.LOGGER.info("{} layout changed", e.target)
});

elem.addEventListener(UIEvents.LAYOUT_CHANGED, e => {
    console.log(`${e.target} layout changed`)
});

---

Lifecycle Events

Lifecycle events describe changes to an element’s presence in the UI tree.

Event	Description	Capture down	Bubbles up	Support Server
added	Fired when the element is added to the UI tree.	❌	❌	❌
removed	Fired when the element is removed from the UI tree.	❌	❌	❌
muiChanged	Fired when the element’s ModularUI instance changes.	❌	❌	❌

INFO

removed will be sent not only the element removing but also UI closing. You could use this event to disponse resource.

Usage

elem.addEventListener(UIEvents.REMOVED, e -> {
    // release resource here for safe
});

elem.addEventListener(UIEvents.REMOVED, e => {
    // release resource here for safe
});

---

Tick Event

The tick event is dispatched once per game tick while the element is active and visible.

Event	Description	Capture down	Bubbles up	Support Server
tick	Fired every tick when the element is active and displayed.	❌	❌	✅

INFO

• tick is not sent to the server automatically.
• You may still listen to it on the server side if needed.

elem.addEventListener(UIEvents.TICK, e -> {
});

elem.addEventListener(UIEvents.TICK, e => {
});
