Dynamic Lights

Since 2.2.8

Dynamic lights let an effect cast coloured light, with shadows, onto the blocks, entities and particles around it.

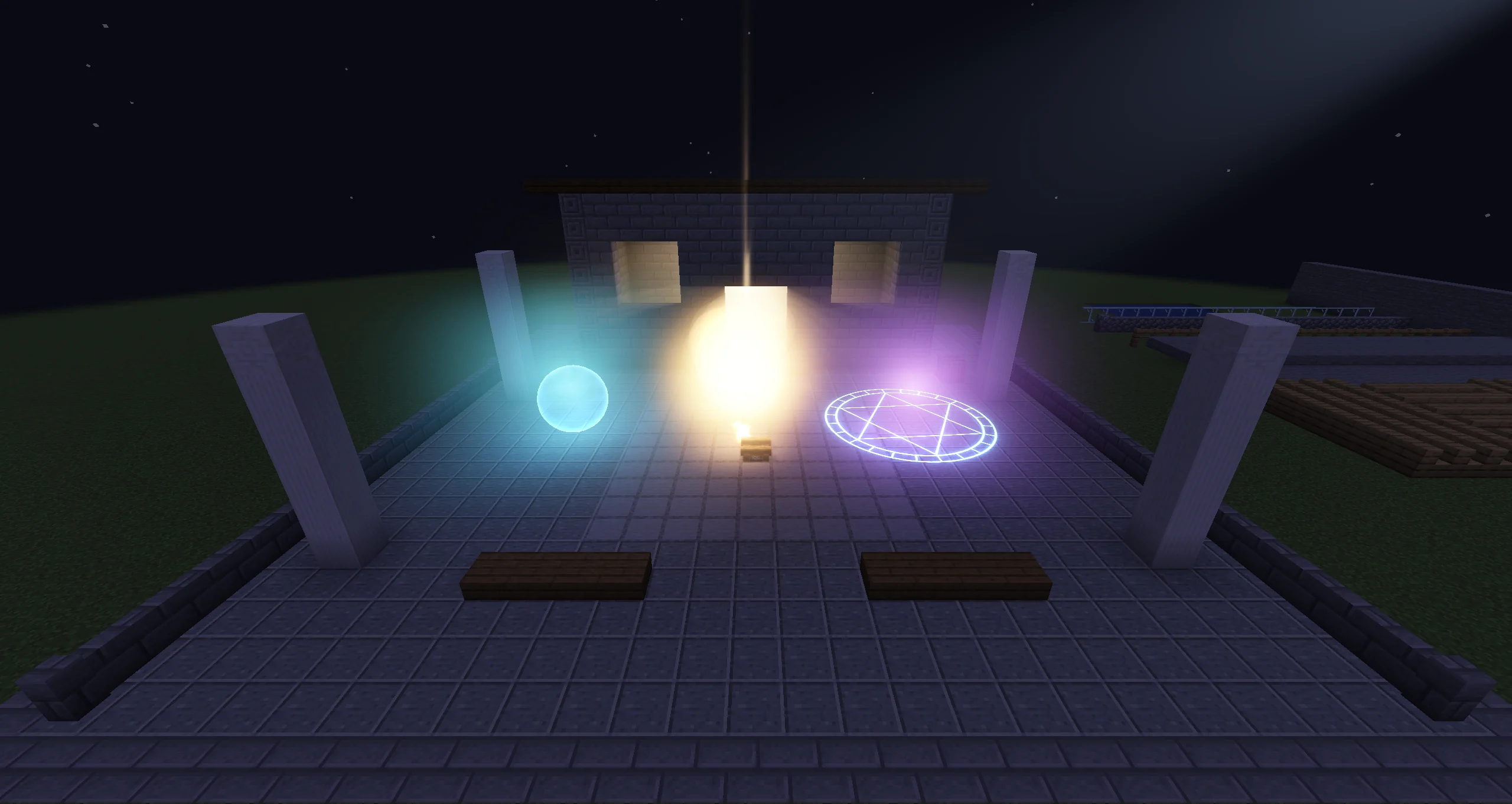

A night square lit only by Photon: a flickering campfire, a magic circle and an energy shield with their own lights, warm light from inside the temple, and a searchlight beam through low mist. The shadows are voxel shadows with soft edges.

How It Works

Photon lights the finished image on screen. After the opaque world is drawn, a lighting pass reads the screen's colour and depth and adds the light of every dynamic light to it. The game's light levels do not change: a Photon light does not stop mobs from spawning or make plants grow, and it is not part of the world's light data.

Every frame Photon collects the lights from three sources, drops the ones outside the view, and ranks the rest by how bright they look from the camera. Lights are then sorted into screen tiles and depth slices, so each pixel only loops over the lights that reach it. The brightest lights with Cast Shadows get shadows.

What Emits Light, and What Is Lit

Source	Where	Use
Light object	FX hierarchy, New → Light	A point or spot light with curves, flicker, shadows and an optional volumetric glow. See Lights and Fog.
Light Emission module	Particle Emitter	Turns a share of the particles into lights that follow them. See Lit Particles and Shaders.
PhotonLights	Java, client only	Lights that are not part of an FX: a lamp, a light on an entity, a flash. See Dynamic Lights API.

Target	How it gets light
Opaque and cutout blocks, entities, block entities	Automatically.
Translucent blocks (water, stained glass, ice)	Not lit without a shader pack.
Photon particles	Turn on Lit by Dynamic Lights on a Texture or Sprite material, or add the Kila Material module of the same name.
Shader Graph and Custom Shader materials	The Dynamic Light node, or photon:lit_particle.glsl in a hand-written shader.
The air around a light	Volumetric on the light: a halo for a point light, a beam for a spot light.
Fog Volume objects	Every light that reaches the fog lights it.

Client Settings

Open Mods → Photon → Config and go to the Dynamic Lights section. The values are stored in config/photon-client.toml under [dynamic_lights]. They are per player and change only how the effect looks on this client.

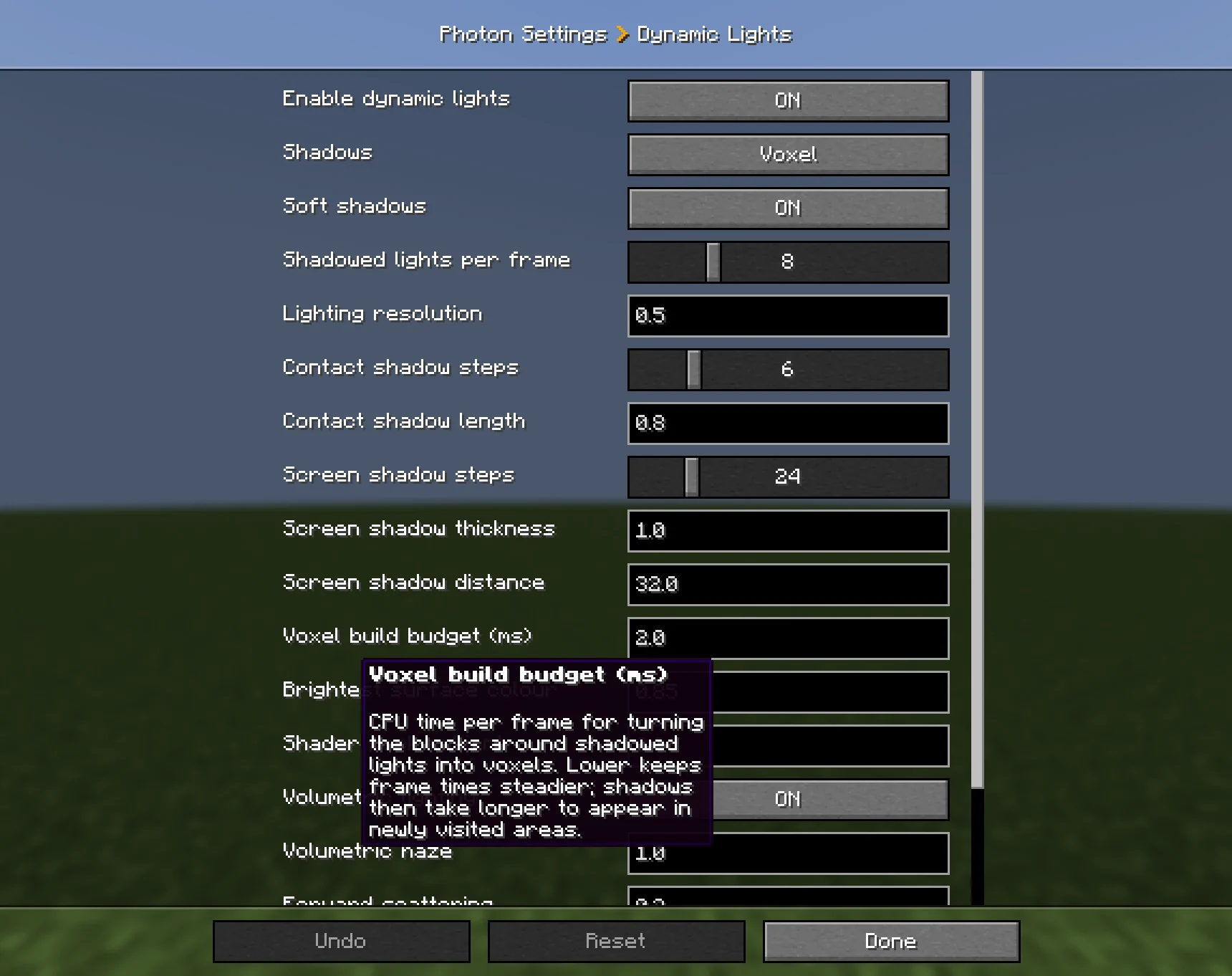

The Dynamic Lights section of Photon's client config screen.

Setting	Key	Default (range)	What it does
Enable dynamic lights	enabled	true	Master switch. While off, no dynamic light is drawn or computed.
Shadows	shadow_mode	Voxel	Off, Screen space or Voxel. See Shadows.
Soft shadows	soft_shadows	true	Soft shadow edges, sized by each light's Source Radius.
Shadowed lights per frame	shadowed_lights	8 (0–32)	How many lights cast shadows each frame. The brightest and closest get them.
Lighting resolution	resolution	0.5 (0.25–1)	Resolution of the lighting relative to the screen. 0.5 looks close to full resolution at about a third of the cost.
Contact shadow steps	contact_shadow_steps	6 (0–32)	Voxel shadows only: a short screen-space trace for fences, panes and entities. 0 turns it off.
Contact shadow length	contact_shadow_length	0.8 (0.1–4)	Voxel shadows only: how far the contact trace reaches, in blocks.
Screen shadow steps	screen_shadow_steps	24 (1–128)	Screen space shadows only: trace steps toward each light.
Screen shadow thickness	screen_shadow_thickness	1.0 (0.05–16)	Screen space shadows only: how far behind a visible surface something still blocks light, in blocks.
Screen shadow distance	screen_shadow_distance	32 (1–128)	Screen space shadows only: the longest shadow trace, in blocks.
Voxel build budget (ms)	voxel_budget_ms	2.0 (0.1–20)	CPU time per frame for turning blocks into voxels. Lower keeps frame times steadier; shadows appear later in new areas.
Brightest surface colour	albedo_max	0.85 (0.1–1)	The brightest colour a surface is assumed to have. Lower values brighten pale surfaces less.
Shader pack ambient	shader_pack_ambient	0.06 (0.001–1)	With a shader pack: the darkest lighting the pack is assumed to give. Raise it if lights look too strong on dark surfaces.
Volumetric lighting	volumetric	true	Draws halos, beams and Fog Volumes.
Volumetric haze	volumetric_density	1.0 (0–8)	Multiplies the glow around volumetric lights and the density of fog volumes. 0 turns both off.
Forward scattering	volumetric_forward_scattering	0.3 (0–0.9)	How much brighter the glow is when you look toward a light.
Volumetric samples	volumetric_samples	4 (1–16)	Integration steps for halos, beams and fog. More is smoother and costs more.
Volumetric lighting with shader packs	volumetric_with_shader_packs	true	Also draws the glow and fog volumes over a shader pack's image.

Performance and Limits

Limit	Value
Lights per frame	1024 after view culling; the most important are kept.
Shadowed lights per frame	Shadowed lights per frame, at most 32.
Fog volumes per frame	32, nearest first.
Lights per Light Emission emitter	Max Lights, 32 by default.

The cost follows the screen area the lights cover more than their number. Many small lights with a short Range are cheap; a few lights with a large range that fill the screen cost more. Shadows, soft shadows and volumetric glow each add to the cost.

As an indication only: on the developer's RTX 4080 Super at 1080p, the default settings with 8 lights cost about 0.5 ms of GPU time. 1024 lights cost about 1.3 ms GPU and 2.2 ms CPU.

Shader Packs (Iris)

• Under a shader pack, the lighting pass runs on the pack's final image. Photon estimates the surface colour from that image; Shader pack ambient tunes the estimate.
• Halos, beams and fog volumes are drawn over the pack's image. Turn off Volumetric lighting with shader packs if they clash with the pack's own fog.
• The pack's own lighting, shadows and reflections do not see Photon's lights.
• Packs that draw the world at a lower internal resolution through their ResolutionScale option (such as Kappa and Nostalgia) are supported. SEUS PTGI HRR still shows the lights out of place.

What Does Not Work

• Without a shader pack, translucent blocks (water, stained glass, ice) and vanilla particles are drawn after the lighting pass and stay unlit.
• Material, node and shader-graph previews show no light.
• Trail, Beam and AraTrail emitters cannot emit lights. Light Emission exists only on the Particle Emitter.
• Lights from FX objects lag one frame behind fast transform changes.
• The editor's scene world is fully lit, so light pools look fainter there than at night in game.
• Lights added with PhotonLights show only in the client world, not in the editor or in UI scenes. A UI scene from another mod is lit by its own FX lights only when its PhotonParticleManager knows its level; see Dynamic Lights API.

In This Section

• Lights and Fog: the Light object, shadows, volumetric lights, Fog Volume, editor preview and Timeline.
• Lit Particles and Shaders: Light Emission, Lit by Dynamic Lights, the Dynamic Light node and hand-written shaders.
• Dynamic Lights API: PhotonLights, DynamicLight and FogVolume from Java.
