Particle Collision

Since 2.2.9

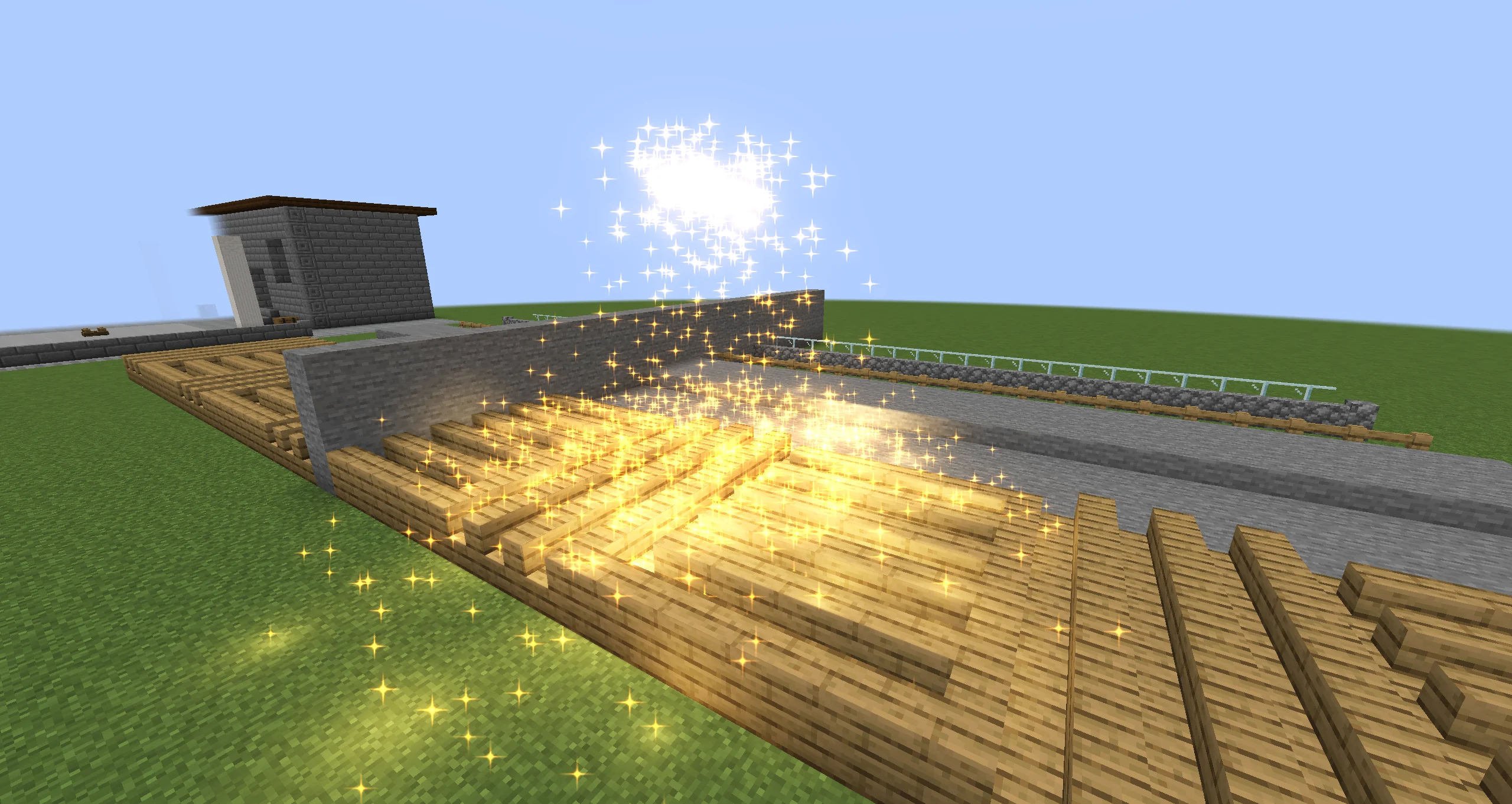

Sparks pour over stairs, slabs and a low wall. Collision is swept, so they bounce off and settle on the real block shapes instead of passing through.

Since 2.2.9, Particle Emitter particles collide with block shapes, fluid surfaces, entities, and Collider objects in the same FX. Collision is swept: a fast particle stops at the first surface on its path instead of passing through a thin wall or the ground. Each contact can bounce, slide, stick, or remove the particle, and can fire sub-emitters or a Java listener.

Turning Collision On

1. Select a Particle Emitter and enable the Physics module. It is off by default.
2. Has Collision is on as soon as the module is enabled.
3. Expand Physics → Collision to choose what the particles hit. The defaults (Blocks and Colliders) match the old blocks-only behaviour.

The Physics fields above the Collision group keep their labels. Since 2.2.9 they mean:

Setting	Default	Meaning
Bounce Chance	1	Rolled on every impact. A particle that does not bounce loses its speed into the surface and slides along it. Before 2.2.9, one failed roll turned bouncing off for good.
Bounce Rate	1	Restitution: the share of the speed into the surface kept on a bounce. 1 is perfectly elastic.
Bounce Spread Rate	0	Random speed added along the surface on each bounce.
Collided Friction	0.7	The share of sliding speed kept per tick. It applies only while the particle touches a surface, and only to the sliding part. Before 2.2.9, it slowed the whole velocity for the rest of the particle's life.
Removed When Collided	off	Remove the particle on its first contact with a solid surface. Triggers do not count.

Gravity and Friction work as before.

The Collision Group

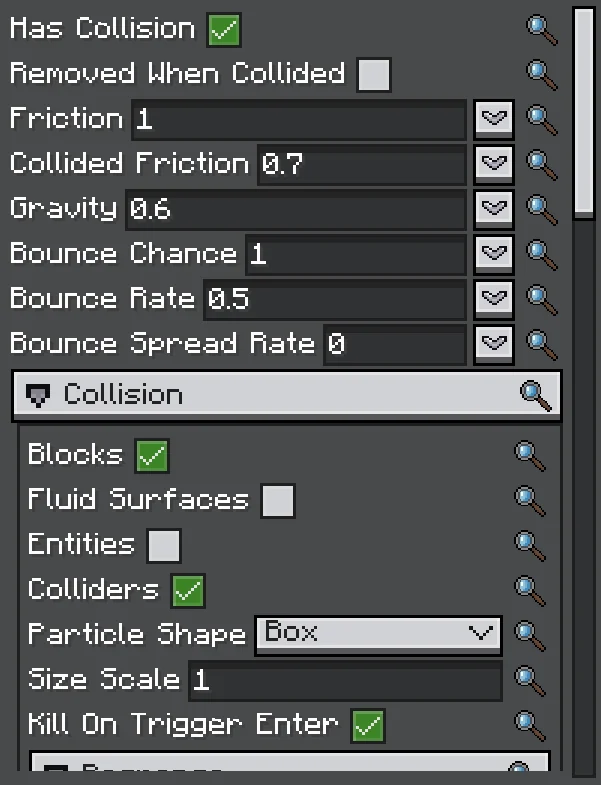

The Physics module with its Collision group expanded: targets at the top, then Response, Filters, Events, and Advanced.

The group needs Has Collision. Its options are split into the targets at the top and four sub-groups.

Targets

Option	Default	Meaning
Blocks	on	Block collision shapes, including slabs, stairs, and fences.
Fluid Surfaces	off	Land on water and lava surfaces from above. Particles that start under a surface pass through it.
Entities	off	Entities near the particles. Client-side only; see Triggers and Entities.
Colliders	on	Collider objects in the same FX.
Particle Shape	Box	Box uses the particle's size. Point uses its centre only.
Size Scale	1 (0–16)	Scales the collision box against the particle size.
Kill On Trigger Enter	off	Remove particles as they enter a trigger: a trigger collider, or an entity in Trigger mode.

With Box, the collision box is the particle Size times Size Scale. A billboard is drawn twice its Size wide, so at 1 part of the quad dips into the surface. Set 2 to make it touch with its visible edge. The default of 1 keeps the resting height of effects made before 2.2.9.

Response

Option	Default	Meaning
Dampen	0	The share of the whole speed lost on each impact (Unity's Dampen). A function over particle lifetime.
Lifetime Loss	0	The share of the particle's total lifetime lost on each impact. A function over particle lifetime.
Min Kill Speed	0 (off)	Remove particles left slower than this after an impact, in blocks per tick.
Max Kill Speed	0 (off)	Remove particles that hit faster than this, in blocks per tick.
Max Bounces	0 (no limit)	Stop bouncing after this many bounces. Later impacts slide or rest.
Kill After Impacts	0 (never)	Remove particles on this many impacts. Resting contacts do not count.
Stick	off	Stop on the first solid contact and stay there.

A stuck particle stays in place on a block. On an entity it is carried by position only, not turned. On a Collider it also turns and scales with the collider. It falls again when the block breaks, the entity leaves, or the collider goes.

Filters

Option	Default	Meaning
Only Blocks	empty	Collide only with these blocks: ids or #tags, such as minecraft:stone or #minecraft:leaves. Empty means every block.
Except Blocks	empty	Never collide with these blocks, even when Only Blocks lists them.
Entity Response	Solid	Solid: entities block particles like blocks do. Trigger: particles pass through and only report Trigger Enter and Trigger Exit.
Entity Category	Living	All, Living (players included), Players, or NonLiving.
Only Entity Types	empty	Collide only with these types of the category: ids or #tags, such as minecraft:zombie. Empty means every type.
Except Entity Types	empty	Never collide with these types, even when Only Entity Types lists them.
Ignore Owner	on	Skip the entity the effect belongs to.
Source Exclusion Radius	0 (off)	Skip the entities within this distance of the effect when its particles first meet entities.
Ignore Spectators	on	Skip players in spectator mode.
Pickable Only	off	Only entities the game lets you target: no markers, no items on the ground.
Colliders	SceneAll	SceneAll: every collider in this FX. List: only the colliders in Collider List.
Collider List	empty	Drag Collider objects here from the hierarchy.

Events

Events options decide which impacts and contact deaths are reported to sub-emitters and listeners. They do not change the physics.

Option	Default	Meaning
Min Impact Speed	0	Impacts slower than this (blocks per tick, into the surface) fire no Collision event. Dampen and Lifetime Loss still apply.
De-duplicate	Off	Report each target once instead of on every impact. PerParticle: once per particle. PerEmitter: once for the emitter, whichever particle hits it. PerGroup: once between the emitters of this effect that share a Group name.
Cooldown	0	Ticks before the same target reports again. 0 means once for the whole playback, or once per particle life with PerParticle.
Group	blank	The name shared by emitters for PerGroup. Blank behaves like PerEmitter.

A target is one block, one entity, or one collider. De-duplication applies to impacts and contact deaths. Trigger Enter and Trigger Exit always report. Use De-duplicate when hundreds of sparks hit the same block and you want one impact effect.

Advanced

Option	Default	Meaning
Max Contacts Per Step	4 (1–16)	How many surfaces one step may slide or bounce along. Past that, the rest of the motion stops at the next surface.
Push Out Of Blocks	on	Push particles out of blocks and solid colliders they overlap (grown into a wall, spawned slightly underground, dragged in by a moving emitter) along the shortest way out.
Max Push	0.5 (0–8)	The farthest a particle is pushed out in one step. Deeper particles stay inside and ignore those blocks.

The defaults suit almost every effect.

Timeline Properties

The Timeline can animate physics.collision.blocks, physics.collision.fluids, physics.collision.entities, physics.collision.colliders, physics.collision.response.dampen, and physics.collision.response.lifetimeLoss, next to the existing physics.* fields. See Animation Tracks and Record Mode.

Collider Objects

A Collider is an FX object with a transform and one shape. Add it from the hierarchy's add menu, like an emitter.

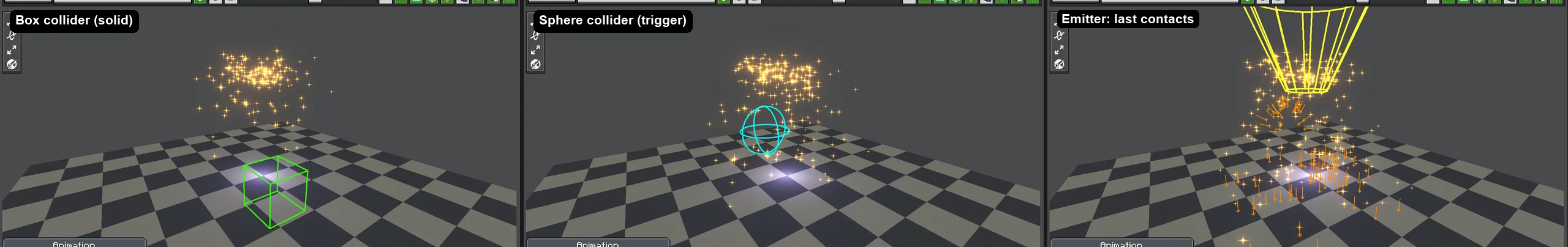

Left: a solid Box collider (green gizmo). Middle: a Sphere collider set to Trigger (cyan); with Kill On Trigger Enter on, sparks vanish inside it. Right: the emitter, with the collision view on, marks its recent contacts and their normals in orange. The editor draws these for the selected object only.

Option	Default	Meaning
Shape	Plane	Plane: infinite, facing the object's local +Y, solid from the front only. Box and Sphere: closed volumes.
Box Size	1 1 1	The box's full size along its local axes, multiplied by the transform scale.
Sphere Radius	0.5	The sphere's radius, multiplied by the transform's largest scale. The sphere stays round.
Trigger	off	Particles pass through and report entering and leaving instead of bouncing.

• The transform places, turns, and scales the shape. A disabled collider is ignored.
• Only Particle Emitters in the same FX collide with it, and only when their Colliders target is on and the Colliders filter accepts it. Ara trails and beams ignore colliders.
• A moving or animated collider pushes the particles it runs into and carries stuck ones. A jump of more than 4 blocks in one tick counts as a teleport and pushes nothing.
• The Timeline can animate Sphere Radius, Trigger, and the transform.
• The editor draws the gizmo of the selected collider while the shape outline toggle or the collision view toggle is on.

Triggers and Entities

A trigger is a Collider with Trigger on, or any entity while Entity Response is Trigger. Particles pass through it. They report Trigger Enter when they come in and Trigger Exit when they leave. A particle born inside a trigger, or reached by a moving one, reports Trigger Enter too. Kill On Trigger Enter removes particles as they enter; that removal also reports a Death.

Entity collision is client-side only. Particles never damage or push entities. The movement of each entity during the tick is swept, so fast mobs do not pass through particles, and moving entities push particles aside.

• Ignore Owner skips the entity the effect is attached to, or the owner its executor declares. Entity effects already declare it; custom executors return it from IEffectExecutor.owner().
• Source Exclusion Radius covers an effect without an owner, such as a spell played at a position next to its caster. Entities within the radius when the particles first meet entities are skipped.
• Fluid Surfaces are one-way. Particles land on water and lava from above, and particles that start under a surface pass through it.

Events and Sub-Emitters

What happened	Sub-emitter event	CollisionEvent.Type
A fresh impact with a solid surface	Collision, plus FirstCollision on the particle's first impact	IMPACT
A collision rule removed the particle	Death	DEATH
The particle entered a trigger	TriggerEnter	TRIGGER_ENTER
The particle left a trigger	TriggerExit	TRIGGER_EXIT

Collision fires on a fresh impact only, not every tick while a particle rests on a surface. The rules that remove a particle are Removed When Collided, Min Kill Speed, Max Kill Speed, Kill After Impacts, and Kill On Trigger Enter. Their Death carries the contact point. A particle that reaches the end of its lifetime still reports Death without a contact.

Sub-emitter entries can spawn at the contact point, align to the surface normal, and filter by surface. See Sub-Emitter Events.

Collisions are not connected to Timeline Signals.

Java Listener

ParticleEmitter sparks = (ParticleEmitter) runtime.findObject("sparks");
sparks.addCollisionListener((emitter, particle, event) -> {
    if (event.type() == CollisionEvent.Type.IMPACT && event.target() instanceof BlockState state) {
        // client-side reaction: a sound, a decal, or a packet to the server
    }
});

CollisionEvent carries type(), position(), normal(), kind() (block, fluid, entity, or collider), target() (a BlockState, an Entity, or a ColliderObject), key() (which block, entity, or collider), and speed() (into the surface, in blocks per tick; 0 for triggers and deaths). Listeners run on the game thread at the end of the emitter's tick, and De-duplicate applies to them. Remove a listener with removeCollisionListener.

Client side

Listeners run on the client. To change gameplay, such as damaging the entity that was hit, send your own packet to the server.

See Custom Executors, Timeline, and Signals for IEffectExecutor.owner() and the rest of the Java side.

Ground Snap

Ground Snap (Particle Emitter → Shape, off by default) drops each spawn point onto the terrain below it, so an effect spawns on uneven ground. It is a Shape option; see Ground Snap.

AraTrail and Beam

• AraTrail: the Physics group of AraTrail emitters and Ara-type particle trails has Collide With Blocks. Trail points then slide along or bounce off blocks, so a trail can lie on the ground. It collides with blocks only. See AraTrail Emitter.
• Beam: a raycast mode that includes entities now stops the beam at entities. See Beam Emitter.

Performance and Debugging

Changed 2.2.9

Emitters with collision can now use Parallel Update. Before 2.2.9 they always updated serially. Parallel collision runs in the client level and in the editor. Below 128 particles an emitter still updates serially, because scheduling would cost more than it saves. In an internal test with 30,000 sparks on a 24-thread CPU, one tick took about 18.6 ms before 2.2.9, about 7 ms serial, and about 1.1 ms parallel. Treat these numbers as indicative.

Photon's client config has a Particle Collision section:

Option	Default	Meaning
Parallel collision	on	Let collision emitters update on worker threads when their Parallel Update is on. Turn it off only if some mod's blocks misbehave when read off the game thread.
Collision cache size	4096 (64–16384)	How many 16×16×16 sections of collision geometry stay cached per level before idle ones are evicted.

In the editor:

• The collision view toggle (collider icon) in the Scene toolbar draws the selected collider, or the last 256 contacts of the selected emitter with their normals.
• With a Particle Emitter selected, the scene information view shows three extra rows: Collision (casts, tests, contacts), Update Time (milliseconds, parallel or serial), and Collision World (cached sections, depenetrated particles, misses).

Turn on only the targets an effect needs. Every extra target is more work per particle.

Limits

• A collision box reaches at most 8 blocks from the particle centre on each axis.
• A particle that moves more than about 512 blocks in one step skips collision for that step. The old limit was 100 blocks per tick.
• During prewarm and an effect's first steps, entities more than about 8 blocks away can be missed.
• Moving block shapes, such as shulker lids and pistons, count as fixed blocks.
• Colliders affect only Particle Emitters in the same FX.

Upgrading from 2.2.8

Changed 2.2.9

Behaviour changes in 2.2.9

Old files load as they are, and the old physics.* fields and Timeline paths keep their names. The new defaults (Blocks and Colliders on, Fluid Surfaces and Entities off) match the old blocks-only collision. Check effects that rely on these details:

• Collision is swept. Particles no longer pass through walls or fall through the ground.
• Bounce Chance is rolled on every impact. A particle that does not bounce slides. Before, one failed roll stopped bouncing for good.
• Collided Friction applies only while touching, and only to the sliding part of the velocity. Before, it slowed the whole velocity after the first contact.
• The Collision sub-emitter event fires once per fresh impact, not again while a particle rests on a surface.
• The Is Collided GPU channel now means "has touched anything". It used to mean "had a non-bouncing hit". See Additional GPU Data.
• Sub-emitter entries saved before 2.2.9 keep spawning at the particle centre. New entries spawn at the contact point.
• Collision emitters with Parallel Update on now update in parallel. If a modded block misbehaves, turn off Parallel collision in the client config.
• Beam raycasts in an entity mode now hit entities.
