Inspector

Since 2.2.1

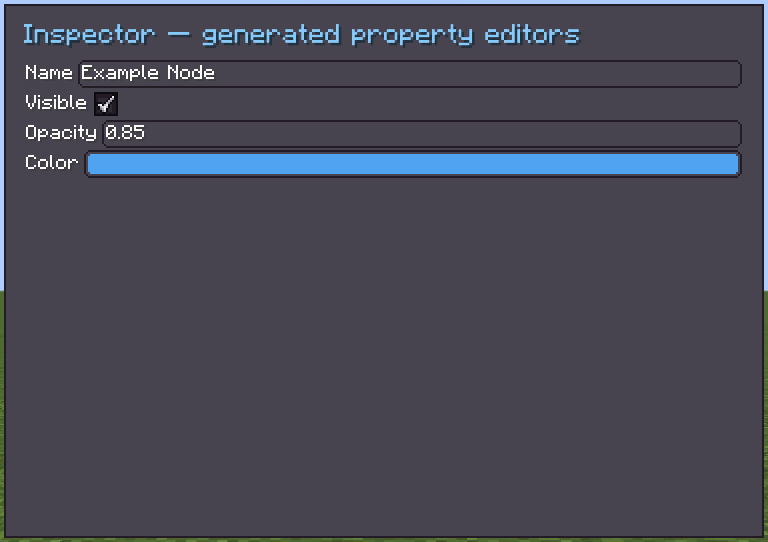

Inspector is a property-editor panel. It accepts any IConfigurable object and renders its configurable properties inside a ScrollerView. Changes to properties are optionally recorded in an undo/redo history stack.

INFO

Everything documented on UIElement (layout, styles, events, data bindings, etc.) applies here too.

---

Usage

var inspector = new Inspector();
parent.addChild(inspector);

// Inspect an object (any IConfigurable):
inspector.inspect(myObject);

// Inspect with a change listener:
inspector.inspect(myObject, configurator -> {
    System.out.println("Changed: " + configurator.getLabel());
});

// Inspect with change listener + close callback:
inspector.inspect(myObject,
    configurator -> System.out.println("Changed"),
    () -> System.out.println("Closed")
);

// Clear the inspector:
inspector.clear();

inspector({
    inspect(myObject)
    onChange { configurator -> println("Changed: ${configurator.label}") }
}) { }

let inspector = new Inspector();
inspector.inspect(myObject);
parent.addChild(inspector);

---

Internal Structure

Field	Description
scrollerView	The ScrollerView that hosts the generated configurator group. ID: _inspector_scroller-view_.

---

Fields

Name	Type	Access	Description
scrollerView	ScrollerView	public final	The scroller containing the configurator UI.
historyStack	IHistoryStack (nullable)	getter/setter	Optional undo/redo stack. When set, property changes are recorded.
inspectedConfigurable	IConfigurable (nullable)	private (getter)	The currently inspected object.

---

Methods

Method	Returns	Description
inspect(IConfigurable)	ConfiguratorGroup	Inspects an object and populates the panel. Returns the generated group.
inspect(IConfigurable, Consumer<Configurator>)	ConfiguratorGroup	Inspects with a listener called on every property change.
inspect(IConfigurable, Consumer<Configurator>, Runnable)	ConfiguratorGroup	Inspects with a change listener and an on-close callback.
inspect(T, Consumer<Configurator>, Runnable, Consumer<T>)	ConfiguratorGroup	Full overload with history action callback for undo/redo.
clear()	void	Clears the current inspection, runs the on-close callback, and empties the panel.
