ScrollerView

Since 2.2.1

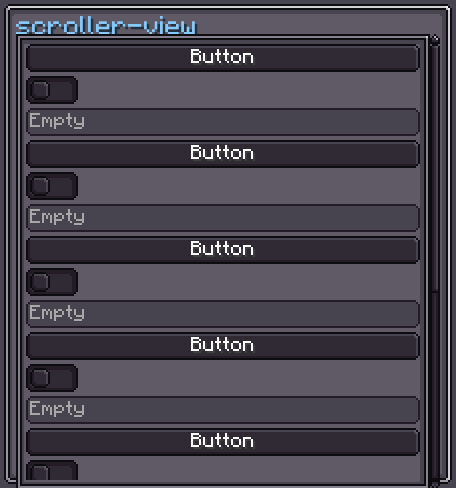

ScrollerView is a scrollable container. It wraps a viewContainer inside a viewPort and provides optional horizontal and vertical scroll bars that appear automatically when content overflows. Children added to a ScrollerView in code or XML are placed inside viewContainer.

INFO

Everything documented on UIElement (layout, styles, events, data bindings, etc.) applies here too.

---

Usage

var sv = new ScrollerView();
sv.scrollerStyle(style -> style.mode(ScrollerMode.VERTICAL));
for (int i = 0; i < 20; i++) {
    sv.addScrollViewChild(new Label().setText("Item " + i, false));
}
parent.addChild(sv);

scrollerView({ scrollerViewStyle { mode(ScrollerMode.VERTICAL) } }) {
    for (i in 0 until 20) {
        label { api { setText("Item $i", false) } }
    }
}

let sv = new ScrollerView();
sv.scrollerStyle(style => style.mode(ScrollerMode.VERTICAL));
for (let i = 0; i < 20; i++) {
    sv.addScrollViewChild(new Label().setText("Item " + i, false));
}
parent.addChild(sv);

---

XML

<scroller-view>
    <label>Item 1</label>
    <label>Item 2</label>
    <label>Item 3</label>
</scroller-view>

Direct XML children are placed inside viewContainer.

---

Internal Structure

CSS class	Description
.__scroller_view_vertical-container__	Row flex container holding viewPort and the vertical scroller.
.__scroller_view_view-port__	Clipping viewport with default 5 px padding and border texture.
.__scroller_view_view-container__	The actual content container where children are placed.
.__scroller_view_vertical-scroller__	Vertical scroll bar (right side).
.__scroller_view_horizontal-scroller__	Horizontal scroll bar (bottom).

---

ScrollerView Style

INFO

scroller-view-mode

Which scroll axes are enabled. Values: HORIZONTAL, VERTICAL, BOTH.

Default: BOTH

sv.scrollerStyle(style -> style.mode(ScrollerMode.VERTICAL));

scroller-view {
    scroller-view-mode: VERTICAL;
}

INFO

scroller-vertical-display / scroller-horizontal-display

Visibility policy for each scroll bar. Values: AUTO (show only when content overflows), ALWAYS, NEVER.

Default: AUTO

sv.scrollerStyle(style -> style
    .verticalScrollDisplay(ScrollDisplay.ALWAYS)
    .horizontalScrollDisplay(ScrollDisplay.NEVER)
);

scroller-view {
    scroller-vertical-display: ALWAYS;
    scroller-horizontal-display: NEVER;
}

INFO

scroller-view-margin

Right margin reserved for the horizontal scroller when the vertical scroller is also visible.

Default: 5

scroller-view {
    scroller-view-margin: 5;
}

INFO

adaptive-width / adaptive-height

When enabled, the ScrollerView resizes itself to match the content container's computed width or height.

Default: false

sv.scrollerStyle(style -> style.adaptiveHeight(true));

scroller-view {
    adaptive-height: true;
}

INFO

min-scroll / max-scroll

Clamp bounds (in pixels) on how far the scroll bar thumb travels per scroll event.

Defaults: 5 / 7

sv.scrollerStyle(style -> style.minScrollPixel(0f).maxScrollPixel(20f));

scroller-view {
    min-scroll: 0;
    max-scroll: 20;
}

---

Fields

Name	Type	Access	Description
viewContainer	UIElement	public final	Container holding all added children.
viewPort	UIElement	public final	Clipping region (has border texture and padding).
verticalContainer	UIElement	public final	Row flex container wrapping viewPort and verticalScroller.
horizontalScroller	Scroller.Horizontal	public final	Horizontal scroll bar.
verticalScroller	Scroller.Vertical	public final	Vertical scroll bar.

---

Methods

Method	Returns	Description
addScrollViewChild(UIElement)	ScrollerView	Adds a child to viewContainer.
addScrollViewChildAt(UIElement, int)	ScrollerView	Inserts a child at a specific index in viewContainer.
addScrollViewChildren(UIElement...)	ScrollerView	Adds multiple children to viewContainer.
removeScrollViewChild(UIElement)	boolean	Removes a child from viewContainer.
clearAllScrollViewChildren()	void	Removes all children from viewContainer.
hasScrollViewChild(UIElement)	boolean	Returns true if the element is a child of viewContainer.
getContainerWidth()	float	Computed content width (includes overflowing children).
getContainerHeight()	float	Computed content height (includes overflowing children).
scrollerStyle(Consumer<ScrollerViewStyle>)	ScrollerView	Configures the style fluently.
viewContainer(Consumer<UIElement>)	ScrollerView	Configures viewContainer.
viewPort(Consumer<UIElement>)	ScrollerView	Configures viewPort.
verticalContainer(Consumer<UIElement>)	ScrollerView	Configures verticalContainer.
horizontalScroller(Consumer<Scroller>)	ScrollerView	Configures the horizontal scroll bar.
verticalScroller(Consumer<Scroller>)	ScrollerView	Configures the vertical scroll bar.
