ColorSelector

Since 2.2.1

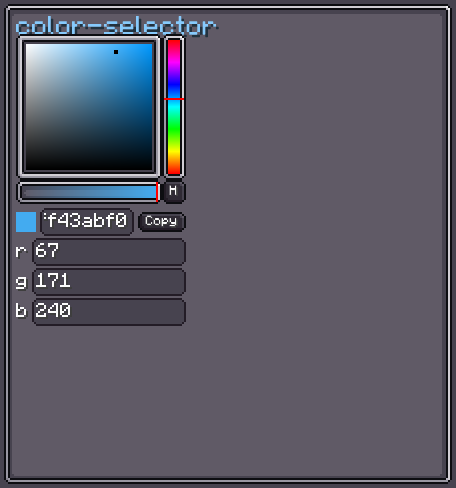

ColorSelector is a full-featured HSB (Hue–Saturation–Brightness) color picker. It extends BindableUIElement<Integer> and its value is the selected color as a packed ARGB integer. It includes:

• An HSB gradient picking surface that can switch between hue, saturation, and brightness axes.
• A hue/alpha slider.
• RGB and hex text fields for direct input.
• A color preview swatch.
• Clipboard copy support.

INFO

Everything documented on UIElement (layout, styles, events, data bindings, etc.) applies here too.

---

Usage

var picker = new ColorSelector();
picker.setValue(0xFF4080FF, false); // initial ARGB color
picker.registerValueListener(color -> System.out.printf("Color: #%08X%n", color));
parent.addChild(picker);

colorSelector({
    color(0xFF4080FF.toInt())
    onChange { color -> println("Color: ${color.toString(16)}") }
}) { }

let picker = new ColorSelector();
picker.setValue(0xFF4080FF, false);
picker.registerValueListener(color => { /* use color */ });
parent.addChild(picker);

---

Internal Structure

Field	Description
pickerContainer	Container holding the main HSB gradient surface.
colorPreview	Swatch showing the currently selected color.
colorSlider	Slider for the primary HSB axis (hue, saturation, or brightness).
alphaSlider	Slider for the alpha (transparency) channel.
hsbButton	Button that cycles between H, S, and B pick modes.
textContainer	Container for the RGB and hex text field inputs.
hexConfigurator	Text input for entering hex color codes.

---

Value Binding

ColorSelector extends BindableUIElement<Integer>:

picker.bind(DataBindingBuilder.intVal(
    () -> config.getColor(),
    color -> config.setColor(color)
).build());

See Data Bindings for full details.

---

Fields

Name	Type	Access	Description
pickerContainer	UIElement	public final	HSB gradient canvas.
colorPreview	UIElement	public final	Color preview swatch.
colorSlider	UIElement	public final	Primary HSB axis slider.
alphaSlider	UIElement	public final	Alpha channel slider.
hsbButton	Button	public final	Cycles the active HSB pick mode (H → S → B → H).
textContainer	UIElement	public final	Container for text inputs.
hexConfigurator	StringConfigurator	public final	Hex color input field.

---

Methods

Method	Returns	Description
setValue(Integer, boolean)	ColorSelector	Sets the ARGB color value; second param controls notification.
getValue()	Integer	Returns the current ARGB color.
registerValueListener(Consumer<Integer>)	void	Registers a listener called whenever the color changes.
