GraphView

Since 2.2.1

GraphView is a pannable, zoomable canvas for displaying node graphs or any arbitrary 2D content. Children are placed on a contentRoot element that can be translated and scaled. The view renders a repeating grid background and supports:

• Pan — click and drag (left-button on the view background, or middle-button anywhere).
• Zoom — mouse wheel, clamped to [min-scale, max-scale].
• Fit — helpers to centre and scale the view to fit all children or a given bounding box.

INFO

Everything documented on UIElement (layout, styles, events, data bindings, etc.) applies here too.

---

Usage

var graph = new GraphView();
graph.graphViewStyle(style -> style
    .allowZoom(true)
    .allowPan(true)
    .minScale(0.2f)
    .maxScale(5f)
);

var node = new UIElement();
graph.addContentChild(node);
parent.addChild(graph);

// Fit the view after adding children:
graph.fitToChildren(20f, 0.1f);

graphView({
    graphViewStyle = {
        allowZoom(true)
        minScale(0.2f)
        maxScale(5f)
    }
}) {
    content(myNodeElement)
}

let graph = new GraphView();
graph.graphViewStyle(style => {
    style.allowZoom(true);
    style.minScale(0.2);
});
graph.addContentChild(myNode);
parent.addChild(graph);

---

Internal Structure

Field	CSS class	Description
contentRoot	.__graph-view_content-root__	Absolutely-positioned element that holds all user-added children and receives the pan/zoom transform.

---

GraphView Style

INFO

allow-zoom

Whether scrolling the mouse wheel changes the zoom level.

Default: true

graph.graphViewStyle(style -> style.allowZoom(false));

graph-view {
    allow-zoom: false;
}

INFO

allow-pan

Whether clicking and dragging pans the view.

Default: true

graph.graphViewStyle(style -> style.allowPan(false));

graph-view {
    allow-pan: false;
}

INFO

min-scale / max-scale

Zoom level bounds.

Defaults: 0.1 / 10

graph.graphViewStyle(style -> style.minScale(0.25f).maxScale(4f));

graph-view {
    min-scale: 0.25;
    max-scale: 4;
}

INFO

grid-background

Texture tiled across the background. The default is a built-in grid sprite with REPEAT wrap mode.

Default: ldlib2:textures/gui/grid_bg.png (repeat)

graph.graphViewStyle(style -> style.gridTexture(myGridTexture));

graph-view {
    grid-background: sprite("mymod:textures/gui/grid.png");
}

INFO

grid-size

Size (in world-space units) of each grid cell.

Default: 64

graph.graphViewStyle(style -> style.gridSize(32f));

graph-view {
    grid-size: 32;
}

---

Fields

Name	Type	Access	Description
contentRoot	UIElement	public final	The transformed canvas holding all content.
graphViewStyle	GraphViewStyle	private (getter)	Current style.
offsetX	float	getter/setter	Current horizontal world-space offset.
offsetY	float	getter/setter	Current vertical world-space offset.
scale	float	private (getter)	Current zoom level.

---

Methods

Method	Returns	Description
addContentChild(UIElement)	GraphView	Adds a child to contentRoot.
removeContentChild(UIElement)	GraphView	Removes a child from contentRoot.
clearAllContentChildren()	GraphView	Removes all children from contentRoot.
graphViewStyle(Consumer<GraphViewStyle>)	GraphView	Configures style fluently.
contentRoot(Consumer<UIElement>)	UIElement	Configures contentRoot.
fitToChildren(float padding, float minScaleBound)	void	Adjusts offset and scale to fit all visible children, with the given padding and minimum scale.
fit(float minX, float minY, float maxX, float maxY, float minScaleBound)	void	Adjusts offset and scale to fit the given bounding box.

---

Adaptive grid and level of detail

Since 2.2.34

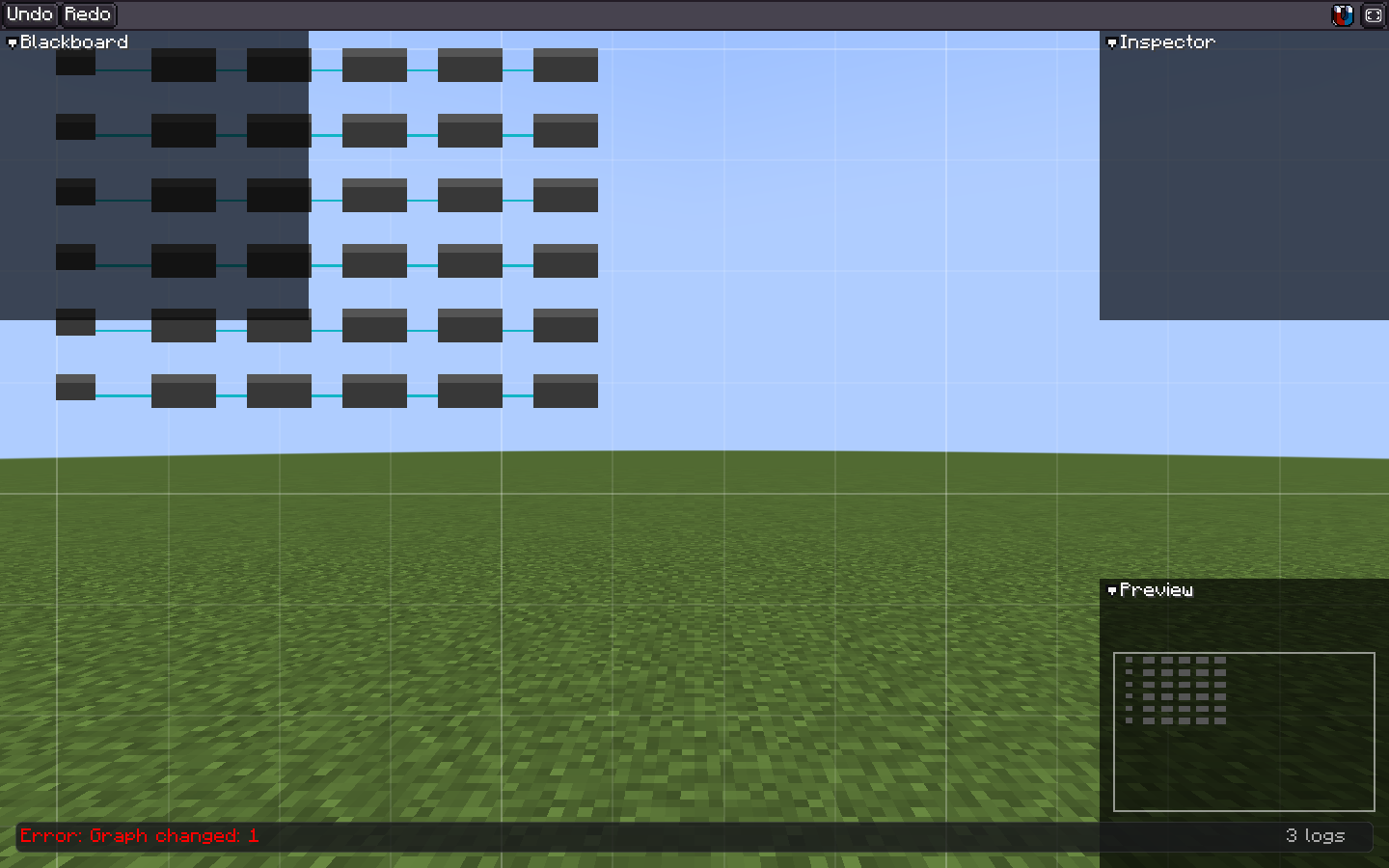

The background grid now adapts its density as the canvas zoom changes. getLod() reports FULL, SIMPLIFIED, or BLOCK from the current physical pixel scale; graph nodes and wires can use it to avoid expensive detail while zoomed out.

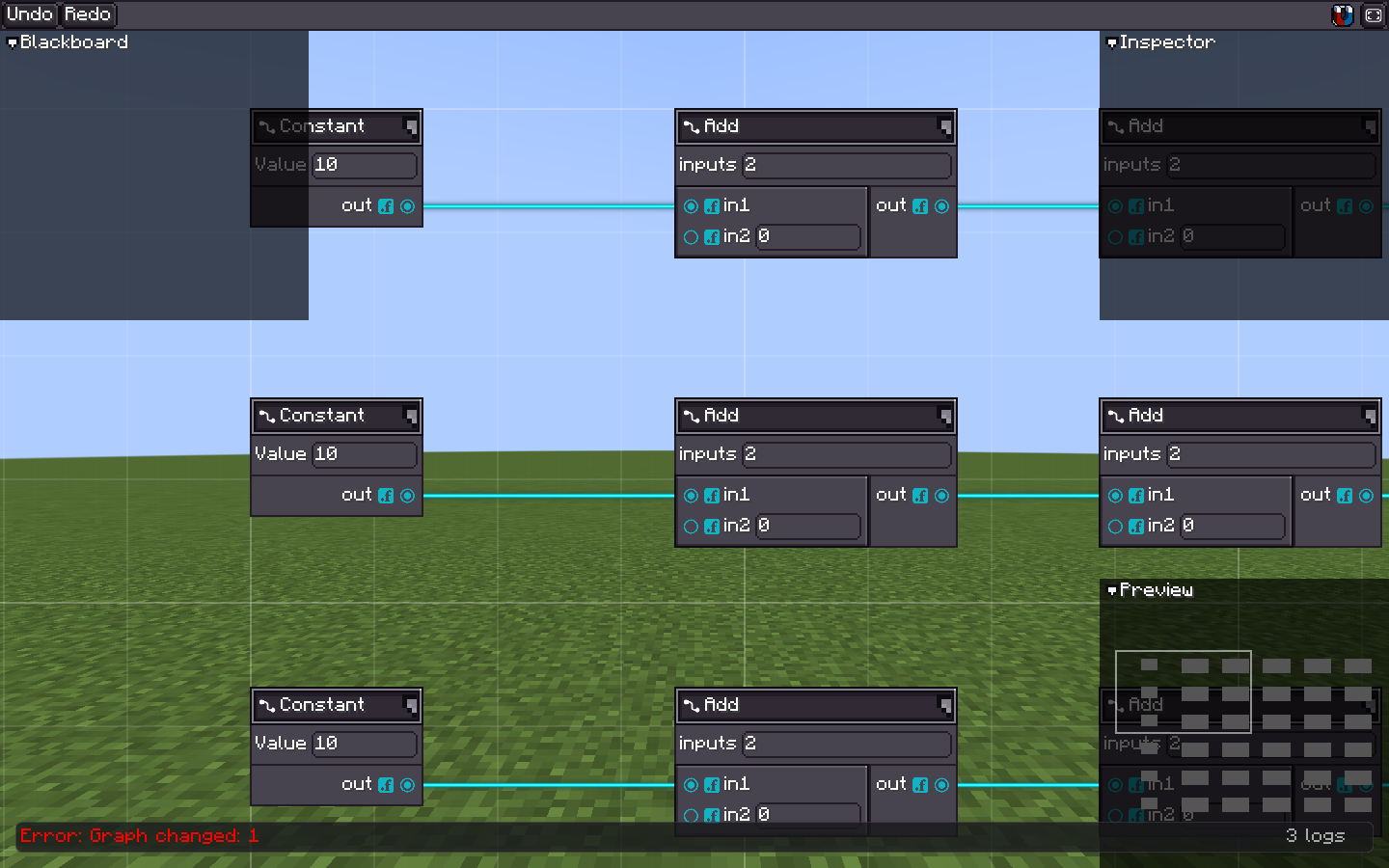

FULL keeps labels, ports, and wire detail when the graph is close enough to edit.

SIMPLIFIED removes expensive fine detail while preserving the graph's structure during navigation.

graph.graphViewStyle(style -> style
        .lodEnabled(true)
        .lodSimplifiedPixelScale(0.5f)
        .lodBlockPixelScale(0.2f));

if (graph.getLod() == GraphViewLod.FULL) {
    // Draw labels or other fine detail.
}

BLOCK is intended for an overview, not for semantic editing. Keep hit targets and essential graph state available at every LOD.
