Toggle

Since 2.2.1

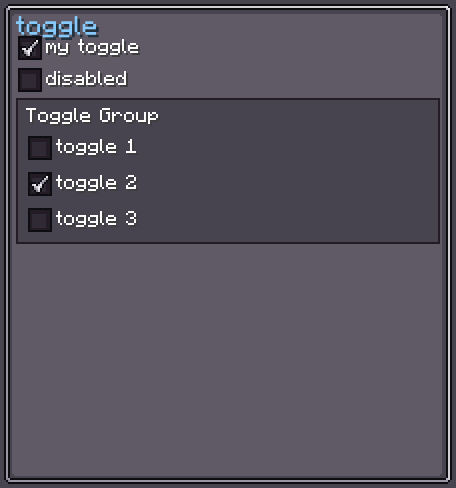

The panel includes a standalone checked toggle and an exclusive three-option group.

Toggle is a checkable UI component — a square button with a mark icon and an optional label. Clicking toggles its on/off state. Multiple toggles can be linked into a ToggleGroup for exclusive (radio-button-like) selection.

Internally, Toggle is a horizontal flex row containing a Button (the clickable box with the mark icon inside) and a Label (the text label). Both are internal children.

INFO

Everything documented on UIElement (layout, styles, events, data bindings, etc.) applies here too.

---

Usage

var toggle = new Toggle();
toggle.setText("my.toggle.label", true); // translated
toggle.setOn(true);
toggle.setOnToggleChanged(isOn -> {
    // called whenever the state changes
});
parent.addChild(toggle);

toggle({
    text("my.toggle.label")
    isOn = true
    onToggle { isOn -> /* state changed */ }
}) {
    // add extra children if needed
}

let toggle = new Toggle();
toggle.setText("my.toggle.label", true);
toggle.setOn(true);
toggle.setOnToggleChanged(isOn => { /* ... */ });
parent.addChild(toggle);

---

XML

<!-- Simple toggle with a translated label -->
<toggle text="my.toggle.label"/>

<!-- Toggle in the on state -->
<toggle text="my.toggle.label" is-on="true"/>

<!-- Empty text attribute hides the label (calls noText()) -->
<toggle text=""/>

<!-- Style internals -->
<toggle text="my.toggle.label">
    <internal index="0">
        <!-- Button (the square box) attributes / children -->
    </internal>
    <internal index="1">
        <!-- Label attributes -->
    </internal>
</toggle>

XML Attribute	Type	Description
text	string	Sets the label text. Pass an empty string to hide the label.
is-on	boolean	Initial on/off state. Default: false.

---

Internal Structure

Toggle contains two internal elements:

Index	Field	Type	CSS class	Description
0	toggleButton	Button	.__toggle_button__	The clickable square box (contains the mark icon).
1	toggleLabel	Label	.__toggle_label__	The text label to the right of the box.

The mark icon lives inside toggleButton and can be targeted via CSS:

/* Style the mark / unmark icon */
.__toggle_mark-icon__ {
    /* override size, padding, etc. */
}

/* Target the label specifically */
toggle > label.__toggle_label__ {
    font-size: 9;
    text-color: #CCCCCC;
}

---

Toggle Style

ToggleStyle controls both the box button textures and the mark/unmark icon.

INFO

base-background / hover-background

Textures for the inner Button in idle and hovered states (delegated to ButtonStyle).

Default: Sprites.RECT_DARK / Sprites.RECT_DARK + white border

toggle.toggleStyle(style -> {
    style.baseTexture(myIdleTexture);   // sets both base & pressed
    style.hoverTexture(myHoverTexture);
});

toggle({ toggleStyle = {
    baseTexture(myIdleTexture)
    hoverTexture(myHoverTexture)
} }) { }

toggle > button.__toggle_button__ {
    base-background: rect(#4a4a4a, 2);
    hover-background: rect(#5a5a5a, 2);
}

INFO

unmark-background

The icon displayed inside the box when the toggle is off.

Default: none (transparent)

toggle.toggleStyle(style -> style.unmarkTexture(myUncheckedIcon));

toggle({ toggleStyle = { unmarkTexture(myUncheckedIcon) } }) { }

toggle {
    unmark-background: sprite("mymod:textures/gui/unchecked.png");
}

INFO

mark-background

The icon displayed inside the box when the toggle is on.

Default: Icons.CHECK_SPRITE

toggle.toggleStyle(style -> style.markTexture(myCheckedIcon));

toggle({ toggleStyle = { markTexture(myCheckedIcon) } }) { }

toggle {
    mark-background: sprite("mymod:textures/gui/checked.png");
}

---

Toggle Group

A ToggleGroup links multiple Toggle instances so that only one can be active at a time (like a radio button group). When allowEmpty is false (default), at least one toggle is always active.

var group = new Toggle.ToggleGroup();
// group.setAllowEmpty(true); // allow all toggles to be off

var t1 = new Toggle().setText("Option A", true).setToggleGroup(group);
var t2 = new Toggle().setText("Option B", true).setToggleGroup(group);
var t3 = new Toggle().setText("Option C", true).setToggleGroup(group);

group.getCurrentToggle(); // the currently active Toggle (or null if allowEmpty)

val group = Toggle.ToggleGroup()

val t1 = toggle({ text("Option A"); toggleGroup = group }) { }
val t2 = toggle({ text("Option B"); toggleGroup = group }) { }
val t3 = toggle({ text("Option C"); toggleGroup = group }) { }

let group = new Toggle.ToggleGroup();
let t1 = new Toggle().setText("Option A", true).setToggleGroup(group);
let t2 = new Toggle().setText("Option B", true).setToggleGroup(group);

TIP

Use ToggleGroupElement to manage the group automatically through the XML / editor — it registers children as they are added and unregisters them when removed.

---

Text

setText / noText / enableText

Controls the label displayed to the right of the toggle box.

toggle.setText("my.translation.key", true);  // translated
toggle.setText("Literal label", false);        // literal
toggle.noText();                               // hide the label
toggle.enableText();                           // show it again

toggle({
    text("my.translation.key")   // translated (default)
    noText()                      // hides the label
}) { }

toggle.setText(Component.literal("Literal label"));
toggle.setText("my.key", true);
toggle.noText();
toggle.enableText();

---

Value Binding

Toggle extends BindableUIElement<Boolean>, so it integrates with the data-binding system:

toggle.bind(DataBindingBuilder.bool(
    () -> myState.isEnabled(),
    val -> myState.setEnabled(val)
).build());

See Data Bindings for full details.

---

Fields

Name	Type	Access	Description
toggleButton	Button	public final	The inner clickable box.
markIcon	UIElement	public final	The icon element inside the box.
toggleLabel	Label	public final	The label element to the right.
toggleStyle	ToggleStyle	private (getter)	Current toggle style.
isOn	boolean	private (getter)	Current on/off state.
toggleGroup	ToggleGroup	private (getter/nullable)	The group this toggle belongs to.

---

Methods

Method	Returns	Description
setOn(boolean)	Toggle	Sets the on/off state and notifies listeners.
setToggleGroup(ToggleGroup)	Toggle	Joins a ToggleGroup. Pass null to leave the group.
setOnToggleChanged(BooleanConsumer)	Toggle	Registers a listener for state changes.
setText(String, boolean)	Toggle	Sets label text. true = translatable.
noText()	Toggle	Hides the label.
enableText()	Toggle	Shows the label.
toggleStyle(Consumer<ToggleStyle>)	Toggle	Configures ToggleStyle fluently.
toggleButton(Consumer<Button>)	Toggle	Configures the inner Button directly.
toggleLabel(Consumer<Label>)	Toggle	Configures the label directly.
markIcon(Consumer<UIElement>)	Toggle	Configures the mark icon element directly.
getValue()	Boolean	Returns the current on/off state.
